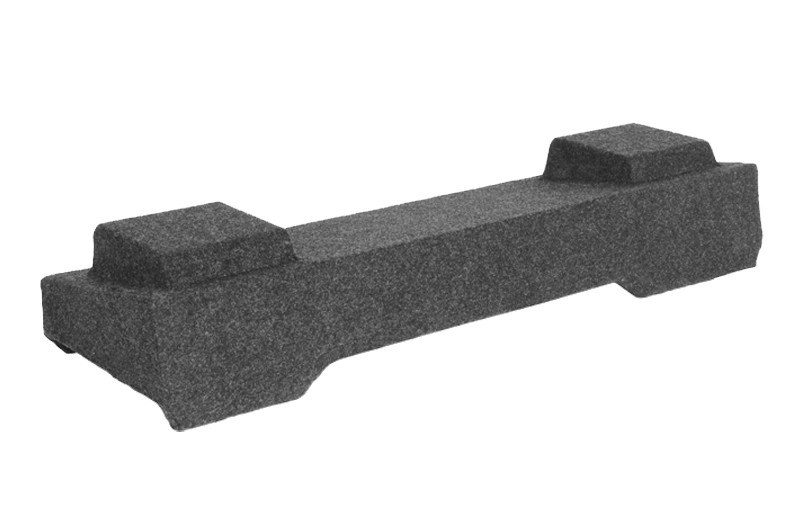

GM 03-07 LD Crew Cab A164-10

• Accu-Tuned 10” Dual sealed subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
• OEM-Fit is designed and engineered specifically for the 2003 -2007 Chevrolet / GMC trucks to ensure an OEM fit without impeding the operation of the back seat.
• High-Grade MDF for Ultimate structural rigidity and no-flex construction.
• 1.1 Cubic Feet Net Volume internal air space (0.54 per sub) is ideal for tight accurate bass reproduction.
• Subwoofer Mounting Depth is 6” which is ideal for lower profile subwoofers.
• Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
• Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
• Premium Rugged Spray Liner for durability and enhanced airtight seal.
• Dimensions Sub cut out: 9.125”, sub mounting depth: 5.5”, height: 6.5” width: 42.25”, depth: 12.5”

Enclosure Specifications

Subwoofer Size: 10"

Subwoofer Cutout Shape: Round / Circle

Box Type: Sealed

Number of Subwoofers: 2

Box Style/Shape: Vehicle Specific

Cutout Diameter or Length: 9.13"

Maximum Speaker Depth: 5.50"

Total Box Volume: 1.16 cubic feet

Box Volume (Each Chamber): 0.58 cubic feet

Height: 6.50"

Width: 42.25"

Depth: 12.50"

Enclosure Second Depth: 12"

Wood Thickness: 5/8"

Number of Terminals: 2

Terminal Type: Spring clips

Box Exterior Color: Black

Box Finish: Coated Tough Guard

***DO NOT USE*** Compatible Vehicle Make and Model

Chevy Silverado
GMC Sierra

Port Details

Number of Ports: 2

Warranty and Return Policy

Parts Warranty Duration: 1 year

Labor Warranty Duration: 1 year

Warranty Provider: Manufacturer
