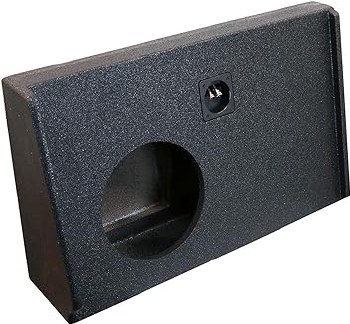

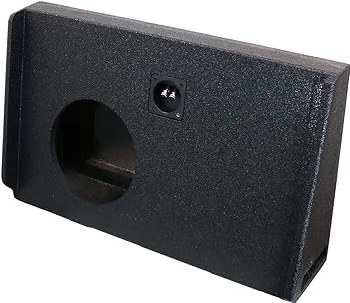

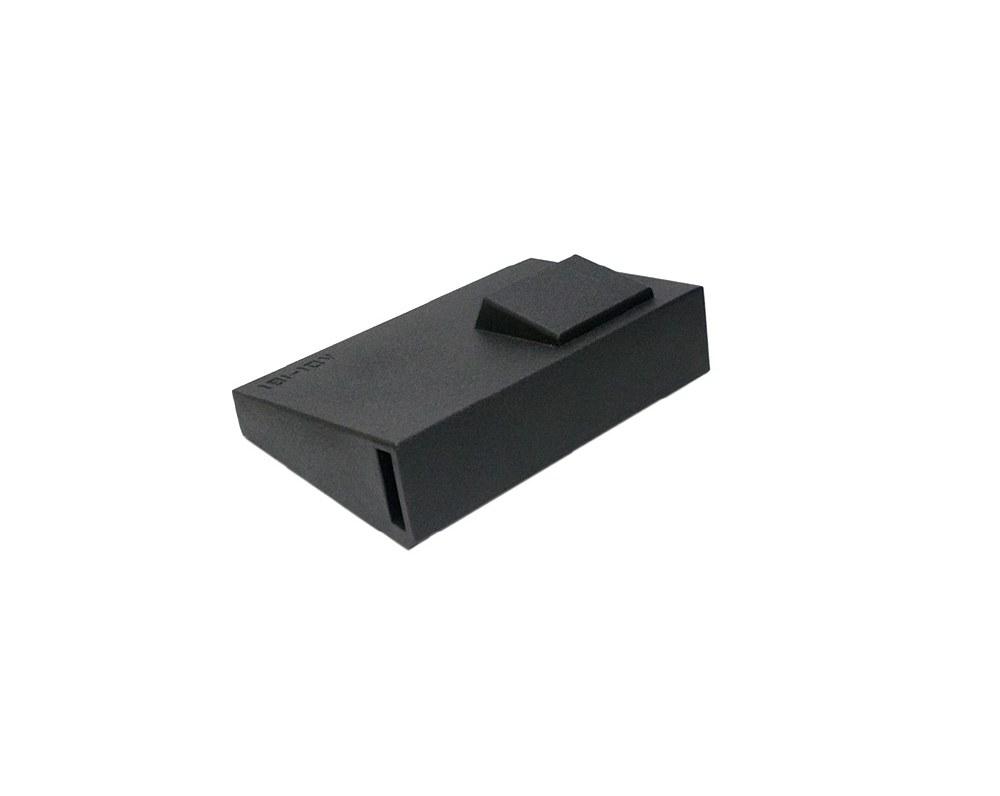

GM 07 UP Crew Cab A181-10V

• Accu-Tuned 10” Single vented subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
• OEM-Fit is designed and engineered specifically for the 2008 - 2018 Chevrolet / GMC trucks to ensure an OEM fit without impeding the operation of the back seat.
• High-Grade MDF for Ultimate structural rigidity and no-flex construction.
• 1.7 Cubic Feet Gross with 0.83 Net Volume internal net air space is ideal for tight accurate bass reproduction.
• Subwoofer Mounting Depth is 9” which is ideal for full size and lower profile subwoofers.
• Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
• Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
• Premium Rugged Spray Liner for durability and enhanced airtight seal.
• Dimensions Sub Cut Out: 9.125”, Mounting Depth: 6.5”, Width: 28.87”, Height: 6.75”, Depth: 17.75”

Enclosure Specifications

Subwoofer Size: 10"

Subwoofer Cutout Shape: Round / Circle

Box Type: Ported

Number of Subwoofers: 1

Box Style/Shape: Vehicle Specific

Cutout Diameter or Length: 9.13"

Maximum Speaker Depth: 6.50"

Total Box Volume: 0.83 cubic feet

Box Volume (Each Chamber): 0.83 cubic feet

Height: 6.75"

Width: 28.88"

Depth: 17.75"

Enclosure Second Depth: 17.50"

Wood Thickness: 5/8"

Number of Terminals: 1

Terminal Type: Spring posts

Box Exterior Color: Black

Box Finish: Coated Tough Guard

Tuning Frequency: 37.94 Hz

***DO NOT USE*** Compatible Vehicle Make and Model

Chevy Silverado
GMC Sierra

Port Details

Number of Ports: 1

Tuning Frequency: 37.94 Hz

Port Diameter: 1.37"

Port Length: 5"

Warranty and Return Policy

Parts Warranty Duration: 1 year

Labor Warranty Duration: 1 year

Warranty Provider: Manufacturer
