D-5.1300

$1,299.99

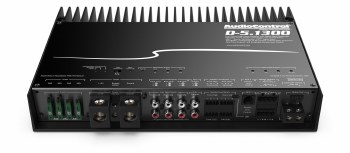

High-Power 5-Channel DSP Matrix Amplifier with AccuBASS. Built-in DSP, Configurable as 5 or 3 channel amplifier. 4 x 200W + 1 x 500W @ 2-Ohms, 4 x 100W + 1 x 300W @ 4-Ohms, 400W @ 4-Ohms Bridged. GTO Signal Sense, Active Speaker-level inputs (6 channels) for OEM integration, 4 preamp inputs, 2 assignable preamp outputs, Input and Output Delay, 12 and 24 dB/octave Linkwitz-Riley crossovers, 30 band equalizer. Optional ACR-3 remote for preset recall and level control

Built-in DSP
Configurable as 5 or 3 channel amplifier
4 x 200 watts + 1 x 500 watts @ 2 ohms
4 x 100 watts + 1 x 300 watts @ 4 ohms
400 watts @ 4 ohms bridged
AccuBASS® Processing
MILCTM Maximum Input Level Control (Patent Pending)
GTOTM Signal Sense
Independent Linkwitz-Riley Alignment crossovers
Summable active speaker-level inputs (8 channels) for OEM integration
6 preamp inputs
PFM Subsonic Filter
Solid One-Piece Aluminum Chassis
Input and Output RTA for precise and informed tuning
Input and Output Delay
12 and 24 dB/octave Linkwitz-Riley crossovers
30 band equalizer with auto EQ
Optional ACR-3 remote for preset recall and level control
Optional AC-BT24 Bluetooth Streamer/Programmer
DM Smart DSP app available in downloads for Mac/PC or…

Inputs

Preamp Inputs: 6 balanced
Preamp Input Voltage Range: 500 mV – 6 Vrms
Speaker Level Inputs: 8
Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs

Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 100 W x 4 + 300 W x 1
- 2 Ω – 200 W x 4 + 500 W x 1
- Bridged 4 Ω – 400 W RMS
Preamp Outputs: 2
Maximum Preamp Output: 8.5 V RMS
