51LX5004

$599.99

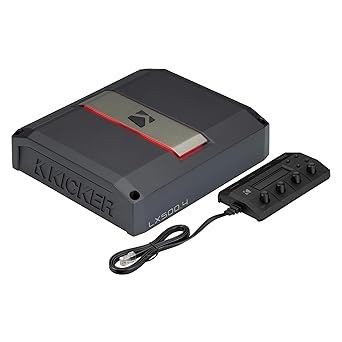

LX500.4 4-Channel Class-D Amplifier, LXCC wired control center included. Gain-match LED's show perfect gain setting, Customize appearance with reversible center panel and choice of 11 RGB LED accent colors, FIT technology accepting low and high-level inputs up to 40V. 225W x 4 @ 2-Ohm, 125W x 4 @ 4-Ohm, 450 x 2 @ 4-Ohm BridgedH 2-3/8" x W 8-7/16" x L 9-7/16"

Powerful 4-Channel Performance: The LX500.4 delivers 225W x 4 @ 2Ω and 450W x 2 @ 4Ω bridged, providing clean, high-output power for your speakers with precision and clarity.
Advanced System Control with LXCC: The included LX Control Center (LXCC) allows real-time monitoring of battery voltage, amp temperature, protection status, and gain adjustments for precise tuning and optimized performance.
High-Efficiency Class-D Technology: Designed for lower power consumption, reduced heat output, and extended playtimes, ensuring reliable performance without sacrificing sound quality.
Crystal-Clear Sound with FIT+ Technology: Eliminates unwanted noise and interference while accepting high- and low-level signals up to 40V, delivering distortion-free audio even in complex installations.
Customizable Look and Built-in Protections: Features a reversible center panel with 11 RGB LED accent colors, multiple turn-on modes, and comprehensive protection against thermal, circuit, and voltage instability for long-lasting reliability.

LX Series Class D 2 ohm Stable 4-Channel Amplifier
RMS Power Rating:
- 4 ohm: 125 watts x 4 channel
- 2 ohm: 225 watts x 4 channel
- Bridged: 450 watts x 2 channel @ 4 ohm
Total RMS power output: 900 watts
LED Power/Protect Light
2 pairs of pre-amp outputs
Speaker-level (high-level) inputs

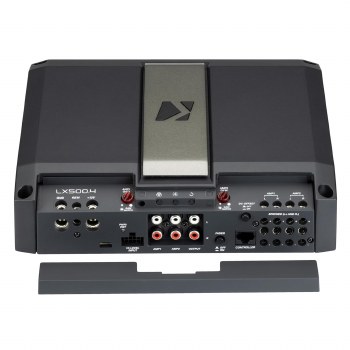

Reversible center panel and choose between 11 RGB LED accent colors
Thermal, circuit and voltage stability protection
Wired LX Control Center (LXCC) included
- Diagnostic readout for battery voltage, LED output clip indication, temperature and protection status
- Adjust gain trim, left-channel time delay, and selectable crossover type, slope and frequency
Thermal, circuit and voltage stability protection
Input sensitivity:
- Low level: 125 mV - 5 volts
- High level: 1 - 40 volts
Frequency Response: 20 - 20000 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: 75 dB
Variable high-pass filter: 20 - 5000 Hz
Variable low-pass filter: 40 - 5000 Hz
Fuse Rating: 80A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 9-7/16" L x 8-7/16" W x 2-3/8" H
