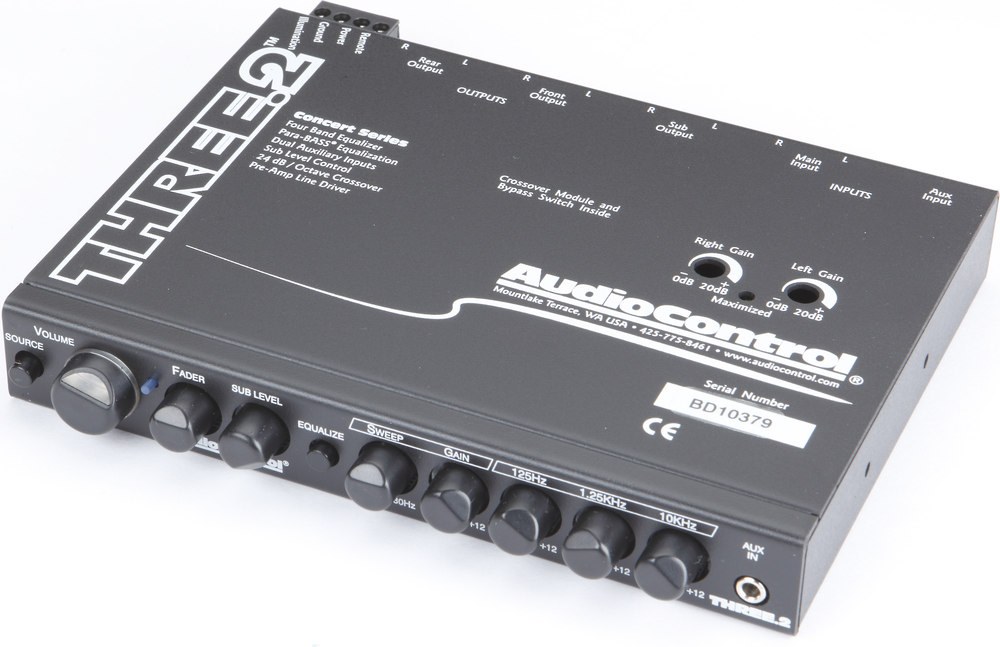

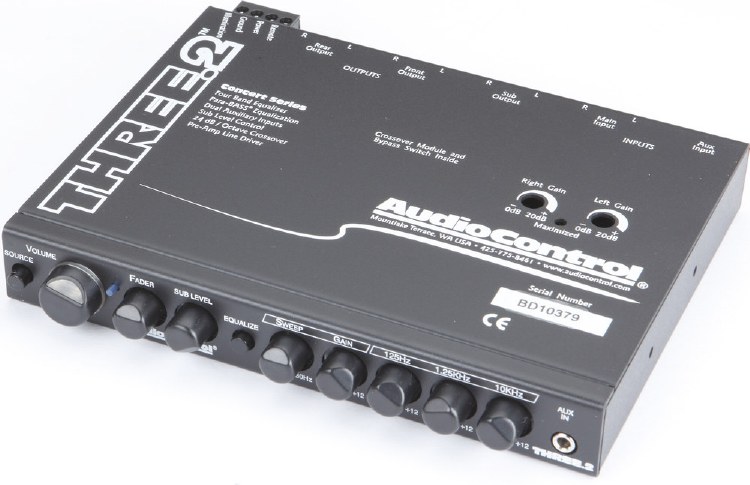

THREE.2

• Stereo graphic equalization
• Front and Rear, Dual Auxiliary inputs
• ParaBASS® low frequency contouring
• Adjustable 24dB/Octave Linkwitz Riley crossover with bypass
• Pre-amp gain of 20dB
• Line driver: 13 volts peak output
• Subwoofer level control
• High headroom PWM switching power supply
• Master volume and fader control
• Selectable Cool Blue or Hot Red back-lighting

Inputs

• Preamp Inputs: 1 (2 channels)
• Input Gain: 0-20dB
• Aux Inputs: 2 (⅛” stereo)
• Input Impedance: 20kΩ

Outputs

• Preamp Outputs: 3 (6 channels)
• Maximum Output Level: 9.5Vrms
• Output Impedance: 150Ω

Performance

• Total Harmonic Distortion: 0.01%
• Frequency Response: 20Hz-20kHz
• Signal to Noise: 110dB
• Equalizer Frequencies: 40Hz-80Hz (parametric), 125Hz, 1.25kHz, 10kHz
• Equalization Cut/Boost: ±12dB
• Crossover type: 24dB/octave Linkwitz-Riley
• Factory Crossover Setting: 90Hz

Control

• Remote In

General

• Power Supply: High Headroom PWM Switching
• Current Draw: 250mA
• Recommended Fuse Rating: 1A

Weights & Dimensions

• Dimensions: 6.75”W x 5”D x 1”H
• Weight: 2.0lbs (0.9kg)

in the box: Three.2, Mounting Brackets, Power Connector, Manual, Warranty
