AUDIO CONTROL
850038647339
THE EPICENTER MX
$199.00

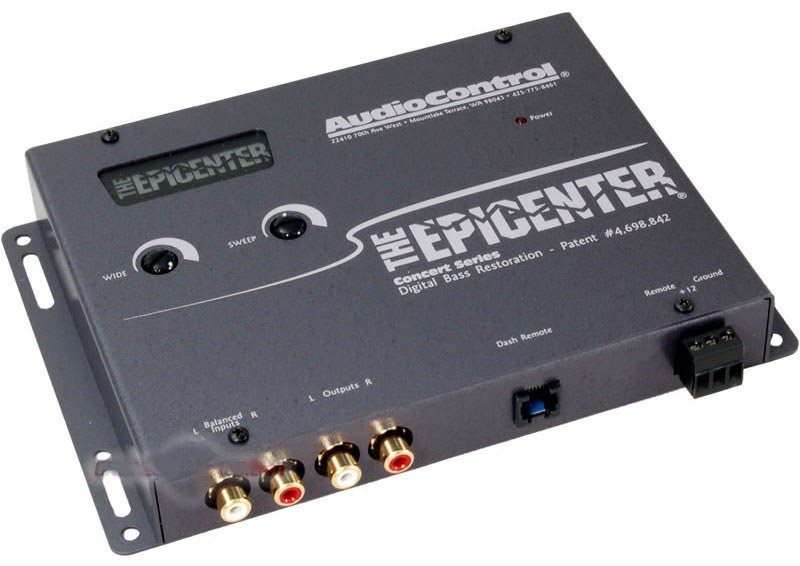

The EPICENTER Edición México, Digital Bass Restoration Processor. ACR-1 Remote Dash mount control, Parametric bass control, Balanced Inputs, Bass Output Control
Screen Printed Mexican Flag and Native Glyphs
Tricolor The Epicenter Illuminated Logo
Screen Printed Mexican Flag and Native Glyphs
Tricolor The Epicenter Illuminated Logo
- AudioControl’s Original Digital Bass Restoration Circuit
- Balanced Differential Inputs
- ParaBASS® Controls for Bass Shaping
- Voltage Limiter for Gain Matching
- Programmable PFM Subsonic Filter Subwoofer Protection
- 13.5 Vrms Maximum Output Level
- Lighted Epicenter Logo Flashes with Music
- ACR-1 Dash Remote Included for Bass Restoration Control
Inputs
- Preamp Inputs: 2 (2 channels)
- Maximum Input Level: 15 Vrms
- Input Impedance: 10kΩ
Outputs
- Preamp Outputs: 2 (2 channels)
- Maximum Output Level: 13.5 Vrms
- Output Impedance: 150Ω
Performance
- Total Harmonic Distortion: 0.003%
- Frequency Response: 10 Hz to 100 kHz
- Signal to Noise: 130 dB
Control
- Remote In
General
- Power Supply: High Headroom PWM Switching
- Current Draw: 150mA
- Recommended Fuse Rating: 1A
Weights & Dimensions
- Dimensions: 8″W x 5.5″D x 1.2″H
- Weight: 1.7 lbs (0.8 kg)
in the box: The Epicenter Edición México, ACR-1 Remote, Power Connector, Certificate of Authenticity, Quick Start Guide, Warranty
