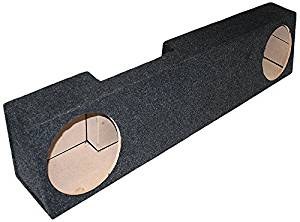

Ram 06-13 Mega Cab A214-10CP

• Accu-Tuned 10” Dual sealed subwoofer enclosure with designated amp room designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
• OEM-Fit is designed and engineered specifically for the 2006 - 2013 Dodge Ram Mega Cab to ensure an OEM fit without impeding the operation of the back seat.
• High-Grade MDF for Ultimate structural rigidity and no-flex construction.
• 0.6 Cubic Feet Net Volume internal air space per sub is ideal for tight accurate bass reproduction.
• Subwoofer Mounting Depth is 9” which is ideal for lower profile subwoofers.
• Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
• Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
• Premium OEM Grade Carpeting for factory look and durability.
• Dimensions Sub cut out: 9.125”, Mounting Depth: 9”, Net Air Volume: 0.6 cu. ft.

Enclosure Specifications

Subwoofer Size: 10"

Subwoofer Cutout Shape: Round / Circle

Box Type: Sealed

Number of Subwoofers: 2

Box Style/Shape: Vehicle Specific

Cutout Diameter or Length: 9.13"

Maximum Speaker Depth: 9"

Total Box Volume: 1.8 cubic feet

Box Volume (Each Chamber): 0.9 cubic feet

Height: 10.37"

Width: 47.75"

Depth: 7.50"

Enclosure Second Depth: 5"

Wood Thickness: 5/8"

Number of Terminals: 2

Terminal Type: Spring clips

Box Exterior Color: Charcoal

Box Finish: Carpet

***DO NOT USE*** Compatible Vehicle Make and Model

Dodge Ram

Port Details

Number of Ports: 2

Warranty and Return Policy

Parts Warranty Duration: 1 year

Labor Warranty Duration: 1 year

Warranty Provider: Manufacturer
