AUDIO CONTROL
850038647537

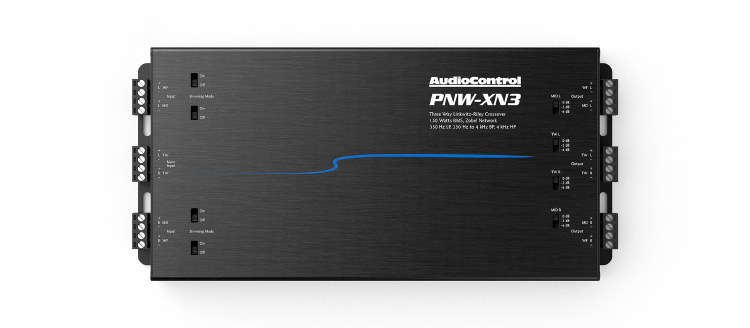

PNW-XN3
$149.00
PNW Series 3-Way Crossover Network. Create a 3-Way speaker system by adding PNW-275 to either PNW-65CS2 or PNW-69CS2. Configurable from 2, 4, or 6 channels of input.
- 2nd Order Linkwitz-Riley Crossover Slope with Zobel Networks
- 350 Hz LP (PNW-65/PNW-69), 350 Hz to 4 kHz BP (PNW-275), 4 kHz HP (PNW-1)
- 150 Watts RMS
- Crossover Type 2nd order Linkwitz-Riley
- Filter Type HP / BP / LP
- XO Frequency 350Hz LP / 350-4k BP / 4K HP
- Slope (Octave) -12 dB
- Power Handling (RMS/Max) 150 Watts / 200 Watts
- Attenuation (Tw / Md) 0 / -3 / -6 dB
- Recommended Speaker Set 1 PNW-65CS2 + PNW-275
- Recommended Speaker Set 2 PNW-69CS2 + PNW-275
DIMENSIONS
- Length: 10.6 in / 270 mm
- Width: 5.12 in / 130 mm
- Height: 1.13 in / 28.6 mm
IN THE BOX:
PNW-XN3, Manual, Warranty
