AUDIO CONTROL
855814005884

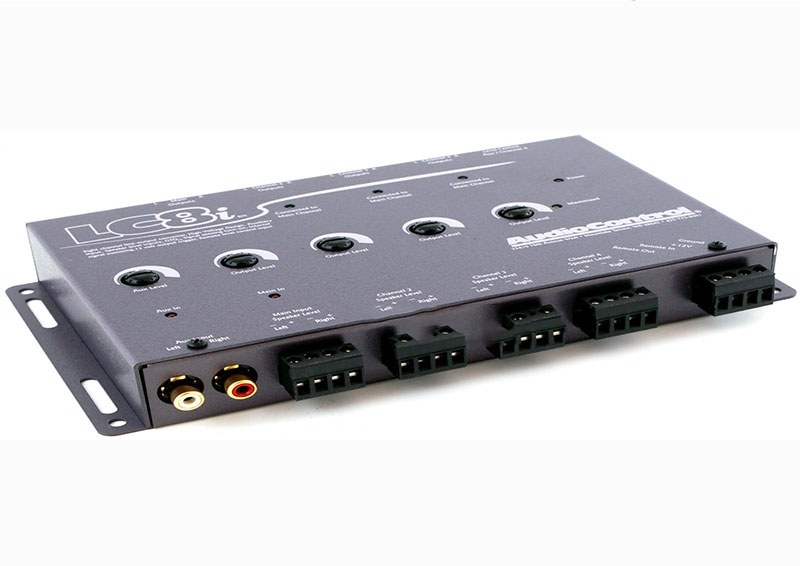

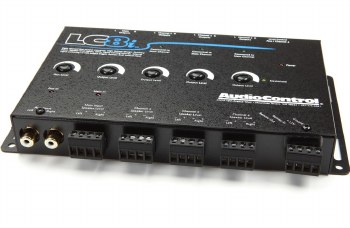

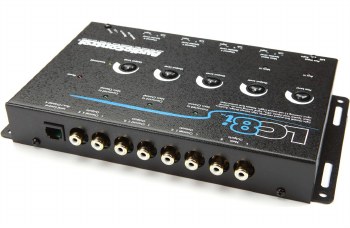

LC8i
$249.00
8 Channel Line Out Converter with Auxiliary Input. Internal Channel Summing, Speaker Level Inputs (up to 400-watt signals), Level Matching Controls, Eight Input and Output Channels, GTO Signal Sensing, ACR-3 Remote Included.
- Eight input and output channels – will accept 400 watt signals per channel
- Auxiliary input for easy interfacing of iPods or other portable audio devices
- Multi-function dash control (included) allows for Source Selection, Auxiliary Input Volume plus Subwoofer Level Control
- Internal channel summing
- Selectable GTO™ Signal-sensing Turn-on Circuit
Inputs
- Speaker Level Inputs: 4 (8 channels)
- Maximum Input (speaker level): 400W per channel at 4Ω
- Preamp Inputs (Aux): 1 (2 channels)
- Input Impedance: 20kΩ
Outputs
- Preamp Outputs: 4 (8 channels)
- Maximum Output Level: 8.5Vrms
- Output Gain: ±12dB
- Output Impedance: 150Ω
Performance
- Total Harmonic Distortion: 0.01%
- Frequency Response: 10Hz-22kHz
Control
- Remote In
- 12VDC Remote Out (always active when unit is on)
General
- Power Supply: High Headroom PWM Switching
- Current Draw: 350mA
- Recommended Fuse Rating: 2A
Weights & Dimensions
- Dimensions: 8.6”W x 4.75”D x 1.2”H
- Weight: 3.0lbs (1.4kg)
in the box: LC8i, ACR-3 Remote, Speaker and Power connectors, Manual, Warranty
