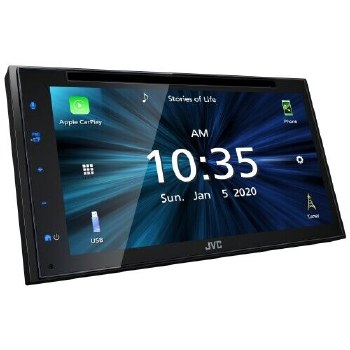

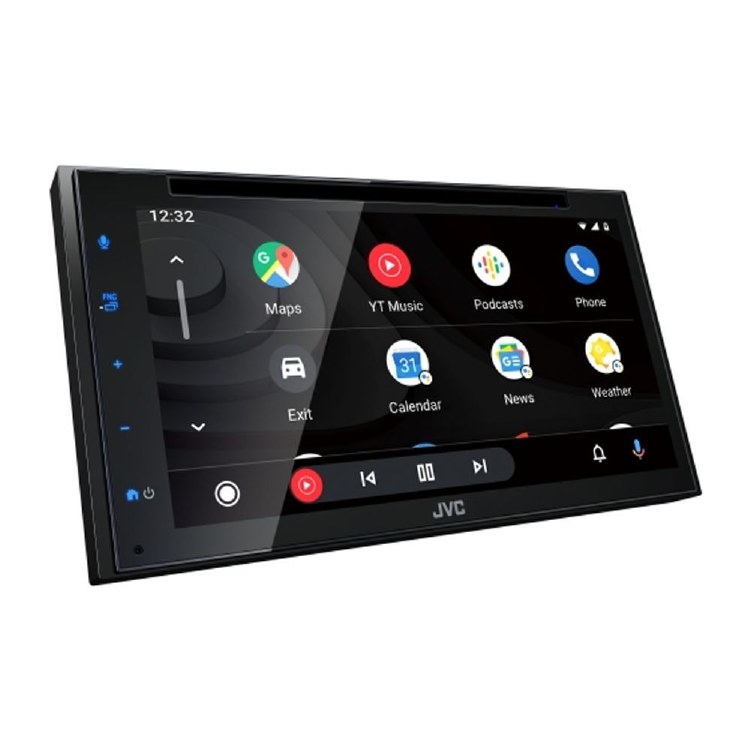

KW-V660BT

• Double DIN In-Dash Bluetooth CD/DVD Multimedia Receiver
• 6.8" Capacitive Touchscreen Display Display
• Power Output:
  • Peak: 50 watts x 4 channel
  • RMS: 22 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control JVC RM-RK258 (sold separately)
• Capacitive Touch Panel
• Blue key color illumination
• Dynamic GUI
• Customizable user interface display
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: KW-V660BT

Smartphone Features

• Apple CarPlay and Android Auto compatible via USB
• Display and control music, navigation, and other apps with iPhone and Android
• Pandora and Spotify capable
• Waze-ready with Apple CarPlay or Android Auto
• Siri Eyes Free control for select iPhones
• Control the stereo using JVC's free Remote app
• Wired phone-mirroring for select devices via USB

Playback and Audio Features

• CD | CD-R/RW | DVD±R/RW | MP3 | WMA | WAV (Hi-Res) | AAC | FLAC (Hi-Res) Audio Playback
• AVI | MP4 | MPG |MOV and WMV Video Playback
• AM/FM tuner with 15FM/5AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer with 7 Selectable Presets
• Subwoofer level, phase, and low-pass crossover controls

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

Audio/Video Inputs and Outputs

• 3 sets of 2 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Rear view camera ready
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming
• Includes an external 10" wired microphone for clear, convenient, distortion-free talking

Monitor

Screen Size

6.8"W VGA Screen

Touch Panel

Capacitive

Gesture Touch Control

Yes

Customizable GUI

Yes

Key Illumination Color

Blue

Dimmer

Yes

Multilingual Display

Yes[4]

Media Playback

MP3 Compatible with Tag

CD / DVD / USB

WMA Compatible with Tag

CD / DVD / USB

WAV Compatible with Tag

CD / DVD / USB

AAC Compatible with Tag

CD / DVD / USB

FLAC Compatible with Tag

CD / DVD / USB

H.264 Compatible

CD / DVD / USB

WMV Compatible

CD / DVD / USB

MPEG 1/2 Compatible

CD / DVD / USB

MPEG 4 Compatible

CD / DVD / USB

AVI/MKV Compatible

CD / DVD / USB

CD Player

CD-R/RW Compatible

Yes

DVD Player

DVD-R/-RW, +R/+RW Compatible

Yes

Video CD Playback

Yes

Bluetooth Control

Built-in Bluetooth[1]

Yes (Wired-Mic included)

Hands Free Call

Yes (HFP1.6 Wideband Speech)

Audio Streaming & Control (A2DP, AVRCP)

Yes

Supported Audio Formats

AAC / SBC

Voice Dialing (voice recognition compatible mobile phone required)

Yes

Phone Book Access Profile (PBAP)

Yes

Alphabetical Search for Phone Book

Yes

Auto Pairing for iPhone/Android

Yes (Android only)

Android Control

Android Auto[2]

Yes (via USB)

Mirroring for Android

Yes (via USB) *Need mirroring App

Android Music Playback

Yes (via Bluetooth(R))

iPod/iPhone Control

CarPlay[3]

Yes (via USB)

USB

USB Port

x 1 (High Speed)

Position

Rear

USB Power Supply

Yes (1.5A High Current Charging)

Radio Tuner

SiriusXM Ready

Yes

Radio Broadcast Data System (RBDS)

Yes

Preset Stations

20(FM:15ch, AM:5ch)

Auto Memory Entry

Yes

FM

Frequency Range

87.9 - 107.9MHz

AM

Frequency Range

530-1,700kHz

Audio

Maximum Power Output (Front & Rear)

50Wx4

Full Bandwidth Power (Front & Rear)

22W x 4 (Full Bandwidth Power, at less than 1% THD)

EQ

Yes (13-Band Graphic EQ)

Preset EQ

Yes (7Preset + 3user)

Bass Boost

Yes

High-Pass Filter/Low-Pass Filter

Yes/Yes

Time Alignment

Yes

Inputs and Outputs

AV Input

mini jack

Video Out

RCA

Rear view camera Input

Yes

Line Output Terminals

2Preouts (Terminal) + Sub WF (Cable)

Pre-output Level/Impedance

2.0V / 10k ohms

Subwoofer Output with Level/Frequency Control

Yes

General

Back Up Memory

Yes

Wireless Remote Control

Ready (RM-RK258 required)

Steering Remote Control Ready

Yes

ISO Connector

Yes

Dimensions (W x H x D)

Installation Size

7" x 3-15/16" x 6" (178 x 100 x 153 mm)

Weight

4.4 lbs. (2.0kg) Including Sleeve and Trim plate

Unit weight in individual package

2.7kg
