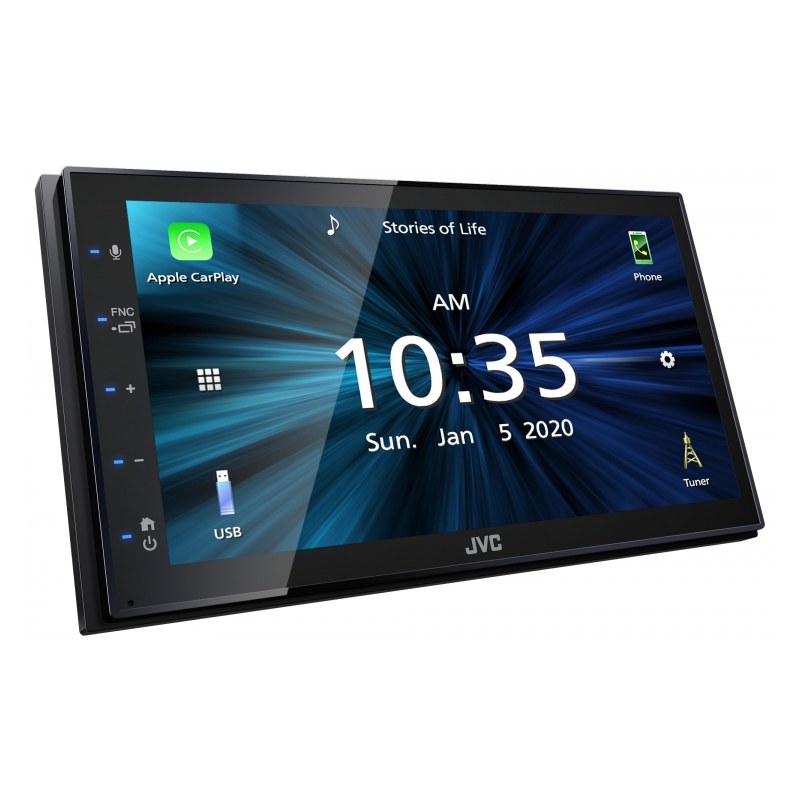

KW-M56BT

• Double DIN In-Dash Bluetooth Multimedia Receiver with USB and AUX
• 6.8" Capacitive Touchscreen Display
• Power Output:
  • Peak: 45 watts x 4 channel
  • RMS: 21 watts x 4 channel
• Bluetooth hands-free calling and audio streaming
• Wireless remote control JVC RM-RK258 (sold separately)
• Capacitive Touchscreen
• Blue key color illumination
• Gesture touch control Finger movements for volume level and forward/back

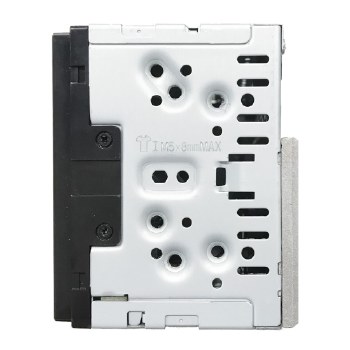

• Short chassis
• Authorized Internet Dealer
• 1-year Manufacturer's Warranty
• MFR #: KW-M56BT

Smartphone Features

• Apple CarPlay and Android Auto compatible
• Control and charging of Apple devices using the USB connection
• Display and control music, navigation, and other apps with iPhone and Android
• Pandora and Spotify capable
• Built-in Amazon Alexa (with Wi-Fi connection)
• Siri Eyes Free control for select iPhones
• Wired phone-mirroring for select devices via USB

Playback and Audio Features

• MP3 | WMA | AAC | WAV | FLAC Audio Playback
• MPEG - 1 | MPEG - 2 | MPEG - 4/H.264 | WMV/MKV Video Playback
• Plays USB memory devices
• AM/FM tuner with 15FM/5AM presets
• MP3 ID3 Tag Display (Title/Artist/Album)
• 13-Band Graphic Equalizer with 7 Presets
• High-pass, low-pass, and subwoofer crossover adjustments

Expandability Options

• Satellite Radio Ready: Requires SiriusXM SXV300V1 and subscription, sold separately
• Steering Wheel Control Ready: Axxess ASWC-1 required and sold separately

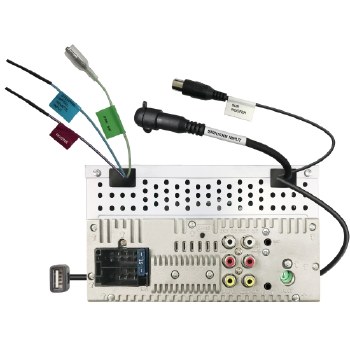

Audio/Video Inputs and Outputs

• 3 sets of 2 volts preamp outputs (front, rear, and subwoofer)
• Rear Auxiliary Input: 3.5mm headphone jack allows connection to your mobile device
• Rear USB Input: USB port allows connection to digital devices such as cellphones, flash drives, portable media players, etc.
• Backup Camera Input: Used for universal rear view cameras with an RCA composite input
• Rear RCA Video Output: Used for connection to separate monitors and other devices
• Rear RCA Audio/Video Input: Used for connecting video accessories such as game consoles, video cameras, etc.

Bluetooth Features

• Built-in Bluetooth technology for hands-free talking and audio streaming

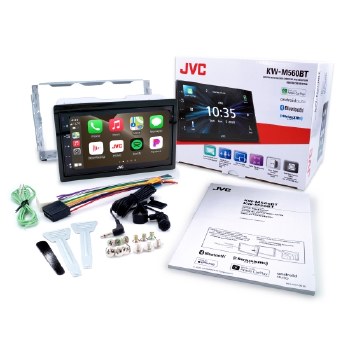

• Includes an external 10" wired microphone for clear, convenient, distortion-free talking

Monitor

Screen Size

6.8"W VGA Screen

Touch Panel

Capacitive

Gesture Touch Control

Yes

Customizable GUI

Yes

Key Illumination Color

Blue

Dimmer

Yes

Multilingual Display

Yes[4]

Media Playback

MP3 Compatible with Tag

USB

WMA Compatible with Tag

USB

WAV Compatible with Tag

USB

AAC Compatible with Tag

USB

FLAC Compatible with Tag

USB

H.264 Compatible

USB

WMV Compatible

USB

MPEG 1/2 Compatible

USB

MPEG 4 Compatible

USB

AVI/MKV Compatible

USB

Bluetooth Control

Built-in Bluetooth[1]

Yes (Wired-Mic included)

Hands Free Call

Yes (HFP1.6 Wideband Speech)

Audio Streaming & Control (A2DP, AVRCP)

Yes

Supported Audio Formats

AAC / SBC

Voice Dialing (voice recognition compatible mobile phone required)

Yes

Phone Book Access Profile (PBAP)

Yes

Alphabetical Search for Phone Book

Yes

Auto Pairing for iPhone/Android

Yes (Android only)

Android Control

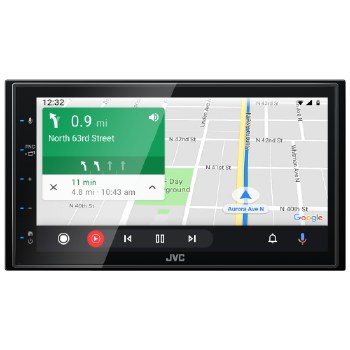

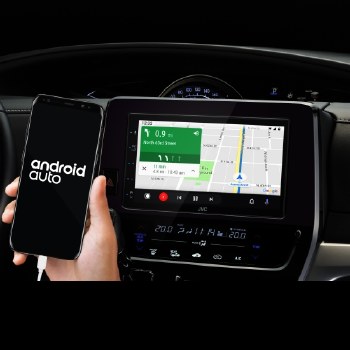

Android Auto[2]

Yes (via USB)

Mirroring for Android

Yes (via USB) *Need mirroring App

Android Music Playback

Yes (via Bluetooth(R))

iPod/iPhone Control

CarPlay[3]

Yes (via USB)

USB

USB Port

x 1 (High Speed)

Position

Rear

USB Power Supply

Yes (1.5A High Current Charging)

Radio Tuner

SiriusXM Ready

Yes

Radio Broadcast Data System (RBDS)

Yes

Preset Stations

20(FM:15ch, AM:5ch)

Auto Memory Entry

Yes

FM

Frequency Range

87.9 - 107.9MHz

AM

Frequency Range

530-1,700kHz

Audio

Maximum Power Output (Front & Rear)

50Wx4

Full Bandwidth Power (Front & Rear)

22W x 4 (Full Bandwidth Power, at less than 1% THD)

EQ

Yes (13-Band Graphic EQ)

Preset EQ

Yes (7Preset + 3user)

Bass Boost

Yes

High-Pass Filter/Low-Pass Filter

Yes/Yes

Time Alignment

Yes

Inputs and Outputs

AV Input

mini jack

Video Out

RCA

Rear view camera Input

Yes

Line Output Terminals

2Preouts (Terminal) + Sub WF (Cable)

Pre-output Level/Impedance

2.0V / 10k ohms

Subwoofer Output with Level/Frequency Control

Yes

General

Back Up Memory

Yes

Wireless Remote Control

Ready (RM-RK258 required)

Steering Remote Control Ready

Yes

ISO Connector

Yes

Dimensions (W x H x D)

Installation Size

7" x 3-15/16" x 2-15/16" (178 x 100 x 75 mm)

Weight

2.8 lbs. (1.3kg) Including Sleeve and Trim plate

Unit weight in individual package

1.8kg
