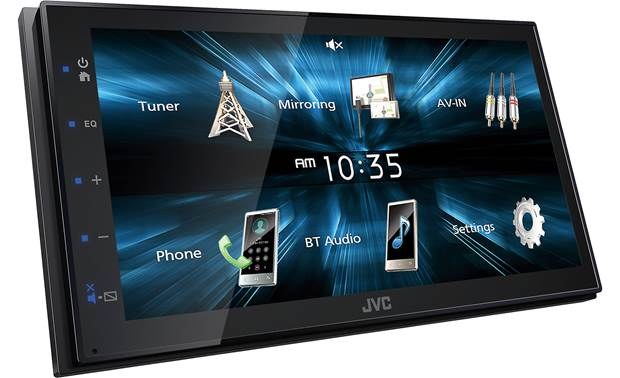

KW-M180BT

• GENERAL FEATURES: 6.75" capacitive touchscreen display, AM/FM tuner, plays media loaded with MP3, WMA, FLAC, and AAC music files, fits double-DIN dash openings
• BLUETOOTH and SMARTPHONE FEATURES: Built-in Bluetooth with dual phone connection for hands-free calling and music streaming, uilt-in iPhone control and rapid Android charging via USB port, Android screen-mirroring via USB
• AUDIO/VIDEO FEATURES: Plays USB memory devices, 13-band equalizer with digital time alignment, high- and low-pass filters, ---Does not play CDs---
• INPUTS: Rear USB input; backup camera input; rear A/V input (RCA) – OUTPUTS: rear video output; 5-channel preamp outputs (2-volt front, rear, mono sub)

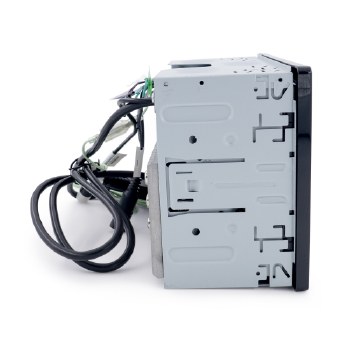

• INSTALLATION SIZE (WxHxD): 7-3/16" x 4-7/16" x 3" (182 x 112 x 75 mm)

• digital multimedia player with AM/FM tuner (does not play CDs)
• plays media loaded with MP3, WMA, AAC , and hi-res FLAC and WAV music files

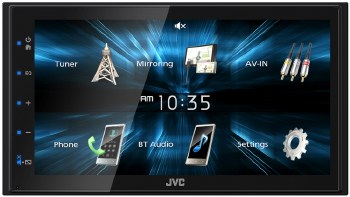

• 6.75" capacitive touchscreen display
• fits double-DIN (4" tall) dash openings
• blue button illumination

Smartphone:

• Android screen-mirroring via USB
• built-in Bluetooth for hands-free calling and music streaming
• built-in iPod, iPhone, and iPad control and Android charging via USB port

Audio/video:

• plays USB memory devices
• 13-band graphic EQ with digital time alignment
• high- and low-pass filters
• subwoofer controls

Expandability:

• inputs: rear USB input; backup camera input; rear A/V input (RCA)
• outputs: rear video output; 5-channel preamp outputs (2-volt front, rear, mono sub)

Other information:

• wired connection to parking brake required to access settings and other features on this receiver (the brake must be connected and set for video display)
• built-in amplifier (16 watts RMS/45 peak x 4 channels)
• compatible with most factory steering wheel audio controls (adapter required)
