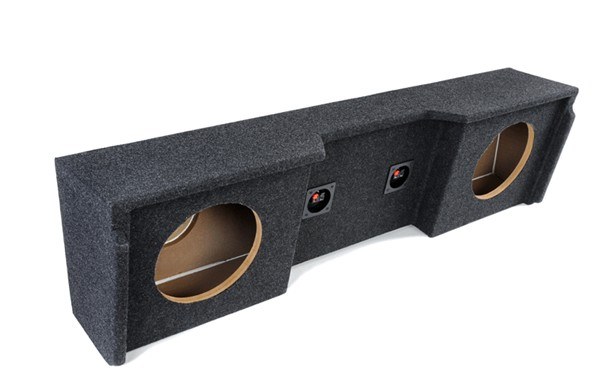

Gm 99-07 Extended Cab A152-10

• Designed specifically for 99-07 Chevy Silverado and GMC Sierra Extended Cab Trucks
• Tuff Coat Sprayliner Finish
• Hardwood MDF construction
• Rounded edges
• Glued and Braced construction
• Subwoofer mounting depth: 7.00"
• Box volume: 0.93 cubic feet (per chamber)

Installation Note: Custom down fire fit under rear driver side seat. No modification required. Doesn't affect rear seat latching.

Enclosure Specifications

Subwoofer Size: 10"

Subwoofer Cutout Shape: Round / Circle

Box Type: Sealed

Number of Subwoofers: 2

Box Style/Shape: Vehicle Specific

Cutout Diameter or Length: 9.13"

Maximum Speaker Depth: 7"

Total Box Volume: 1.86 cubic feet

Box Volume (Each Chamber): 0.93 cubic feet

Height: 9.25"

Width: 51.25"

Depth: 14.75"

Enclosure Second Depth: 13.13"

Wood Thickness: 5/8"

Number of Terminals: 2

Terminal Type: Spring posts (banana clip ready)

Box Exterior Color: Black

Box Finish: Coated Tough Guard

***DO NOT USE*** Compatible Vehicle Make and Model

Chevy Silverado
GMC Sierra

Port Details

Number of Ports: 2

Warranty and Return Policy

Parts Warranty Duration: 1 year

Labor Warranty Duration: 1 year

Warranty Provider: Manufacturer
