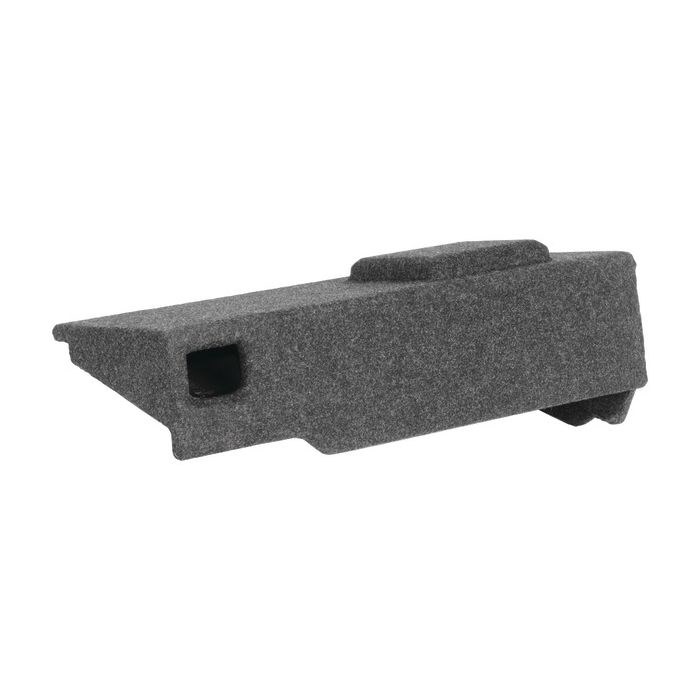

GM 07+ Ext. Cab A131-10CPV

• Accu-Tuned 10” Single vented subwoofer enclosure designed for optimum bass response and low-frequency reproduction which is ideal for lower profile sound quality subwoofers.
• OEM-Fit is designed and engineered specifically for the 1999-2007 Chevrolet / GMC trucks to ensure an OEM fit without impeding the operation of the back seat.
• High-Grade MDF for Ultimate structural rigidity and no-flex construction.
• 1.1 Cubic Feet Gross and 1.0 Net Volume internal net air space are ideal for tight accurate bass reproduction.
• Subwoofer Mounting Depth is 6.25” which is ideal for full size and lower profile subwoofers.
• Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
• Pneumatic Applied Brad Nails to pull tight and hold the MDF parts during the glue drying process and help assure a no-leak, no-rattle air chamber.
• Premium OEM Grade Carpeting for factory look and durability.
• Dimensions Sub Cut Out: 9.125”, Mounting Depth: 6.25”, Width: 27.25”, Height: 8.75”, Depth: 11.875”

Enclosure Specifications

Subwoofer Size: 10"

Subwoofer Cutout Shape: Round / Circle

Box Type: Ported

Number of Subwoofers: 1

Box Style/Shape: Vehicle Specific

Cutout Diameter or Length: 9.13"

Maximum Speaker Depth: 6"

Total Box Volume: 1.0 cubic feet

Box Volume (Each Chamber): 1.0 cubic feet

Height: 6.88"

Width: 27.25"

Depth: 11.88"

Enclosure Second Depth: 14.25"

Wood Thickness: 5/8"

Number of Terminals: 1

Terminal Type: Spring clips

Box Exterior Color: Charcoal

Box Finish: Carpet

Tuning Frequency: 37.41 Hz

***DO NOT USE*** Compatible Vehicle Make and Model

Chevy Silverado
GMC Sierra

Port Details

Number of Ports: 1

Tuning Frequency: 37.41 Hz

Warranty and Return Policy

Parts Warranty Duration: 1 year

Labor Warranty Duration: 1 year

Warranty Provider: Manufacturer
