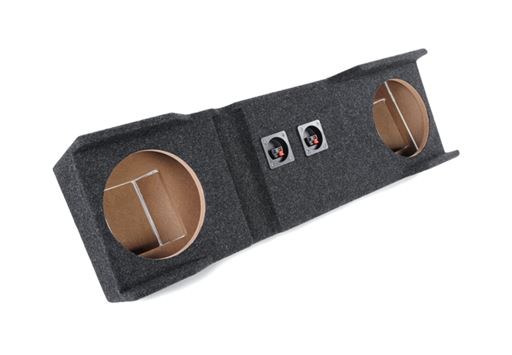

GM 00-06 HD Crew Cab A162-10CP

• Accu-Tuned 10” Dual sealed subwoofer enclosure designed for optimum bass response and low frequency reproduction which is ideal for lower profile sound quality subwoofers.
• OEM-Fit is designed and engineered specifically for the 1999-2006 Chevrolet / GMC trucks to ensure an OEM fit with out impeding the operation of the back seat.

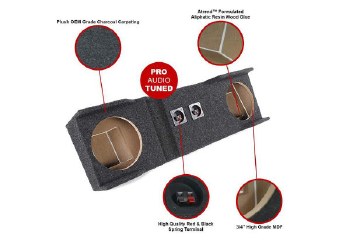

• High Grade MDF for Ultimate structural rigidity and no-flex construction. 1.5 Cubic Feet Net Volume internal air space (.75 per sub) is ideal for tight accurate bass reproduction. Subwoofer Mounting Depth is 6” which is ideal for lower profile subwoofers.
• Specially Formulated Aliphatic Wood Glue to ensure an airtight seal between all MDF parts with a second application of glue around all internal joints after final assembly.
• Dimensions Sub cut out: 9.125”, mounting depth: 6”, front height: 7.875”, rear height: 5.5”, width: 43.625”, front depth: 13.125”, rear depth: 12.5”

  Installation Note: Custom downfire fit under rear seat, enclosure will only fit heavy duty crew cabs (1500, 2500, 3500). Heavy duty crew cabs will have the jack located under the seat on the passenger side.

  This box does NOT fit the Z71 models.

Enclosure Specifications

Subwoofer Size: 10"

Subwoofer Cutout Shape: Round / Circle

Box Type: Sealed

Number of Subwoofers: 2

Box Style/Shape: Vehicle Specific

Cutout Diameter or Length: 9.13"

Maximum Speaker Depth: 6"

Total Box Volume: 1.1 cubic feet

Box Volume (Each Chamber): 0.55 cubic feet

Height: 7.88"

Width: 43.63"

Depth: 13.13"

Second Depth: 12.50"

Wood Thickness: 5/8"

Number of Terminals: 2

Terminal Type: Spring clips

Box Exterior Color: Charcoal

Box Finish: Carpet

***DO NOT USE*** Compatible Vehicle Make and Model

Chevy Silverado
GMC Sierra

Port Details

Number of Ports: 2

Warranty and Return Policy

Parts Warranty Duration: 1 year

Labor Warranty Duration: 1 year

Warranty Provider: Manufacturer
