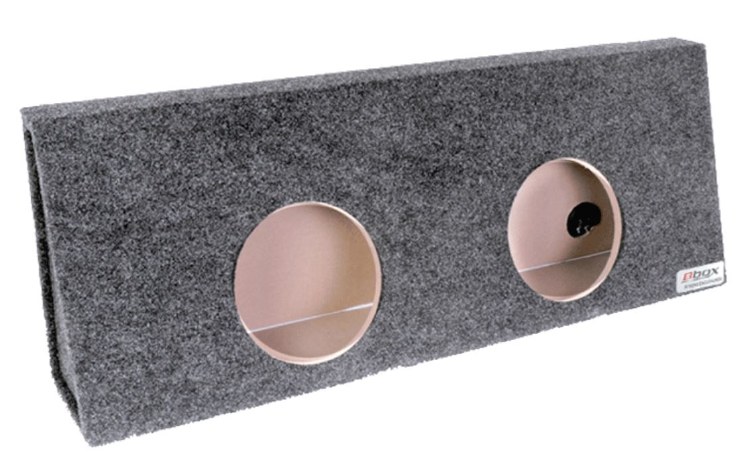

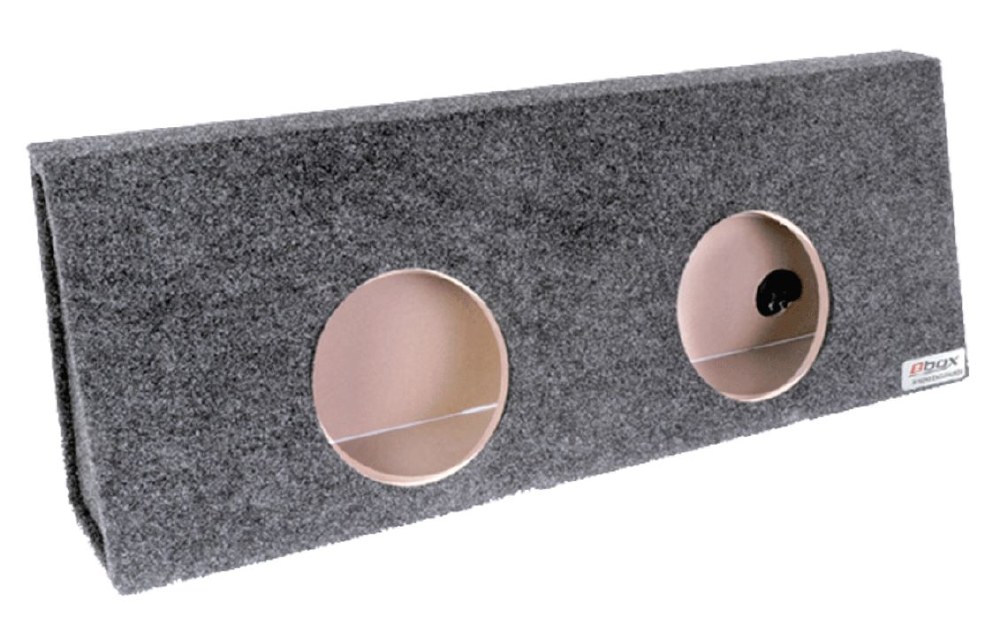

FORD 99 - 07 A392-10CP

• Designed specifically for 1999-2007 Ford F250/F350 Crew Cab Trucks
• Premium Carpeted Finish
• 3/4" Mounting Baffle
• Hardwood MDF construction
• Rounded edges
• Glued and Braced construction
• Subwoofer mounting depth: 5.75"
• Box volume: 0.96 cubic feet (per chamber)

Installation Note: Fits behind the rear seat, removal of jack kit is required along with rear seat belt cover and carpet. The power motor will need to be removed during installation

Enclosure Specifications

Subwoofer Size: 10"

Subwoofer Cutout Shape: Round / Circle

Box Type: Sealed

Number of Subwoofers: 2

Box Style/Shape: Vehicle Specific

Cutout Diameter or Length: 9.13"

Maximum Speaker Depth: 4.50"

Total Box Volume: 1.92 cubic feet

Box Volume (Each Chamber): 0.96 cubic feet

Height: 17"

Width: 45.75"

Depth: 8.25"

Second Depth: 3.50"

Wood Thickness: 5/8"

Number of Terminals: 2

Terminal Type: Spring clips

Box Exterior Color: Charcoal

Box Finish: Carpet

***DO NOT USE*** Compatible Vehicle Make and Model

Ford F-250
Ford F-350

Port Details

Number of Ports: 2

Warranty and Return Policy

Parts Warranty Duration: 1 year

Labor Warranty Duration: 1 year

Warranty Provider: Manufacturer
