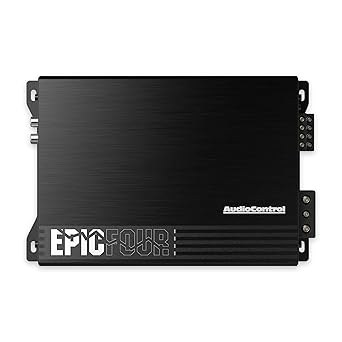

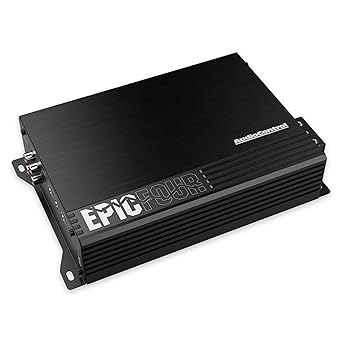

EPICBIGFOUR

• Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.
• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.
• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.
• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).
• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.
  • Output Over-Current Protection (OCP)
  • Input Over-Voltage Protection (OVP)
  • Input Under-Voltage Protection (UVP)
  • Output DC-Offset Protection (DCP)
  • Over-Temperature Protection (OTP)

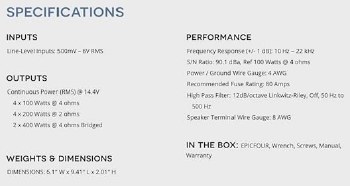

INPUTS

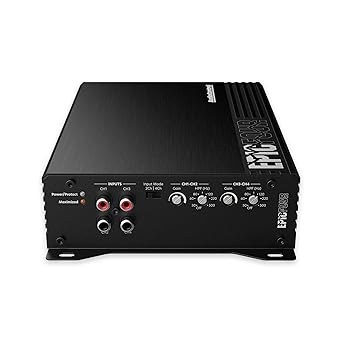

• Line-Level Inputs: 500mV – 6V RMS

OUTPUTS

• Continuous Power (RMS) @ 14.4V

  • 4 x 100 Watts @ 4 ohms

  • 4 x 200 Watts @ 2 ohms

  • 2 x 400 Watts @ 4 ohms Bridged

WEIGHTS & DIMENSIONS

• DIMENSIONS: 6.1″ W x 9.41″ L x 2.01″ H

PERFORMANCE

• Frequency Response (+/- 1 dB): 10 Hz – 22 kHz
• S/N Ratio: 90.1 dBa, Ref 100 Watts @ 4 ohms
• Power / Ground Wire Gauge: 4 AWG
• Recommended Fuse Rating: 80 Amps
• High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 500 Hz
• Speaker Terminal Wire Gauge: 8 AWG
