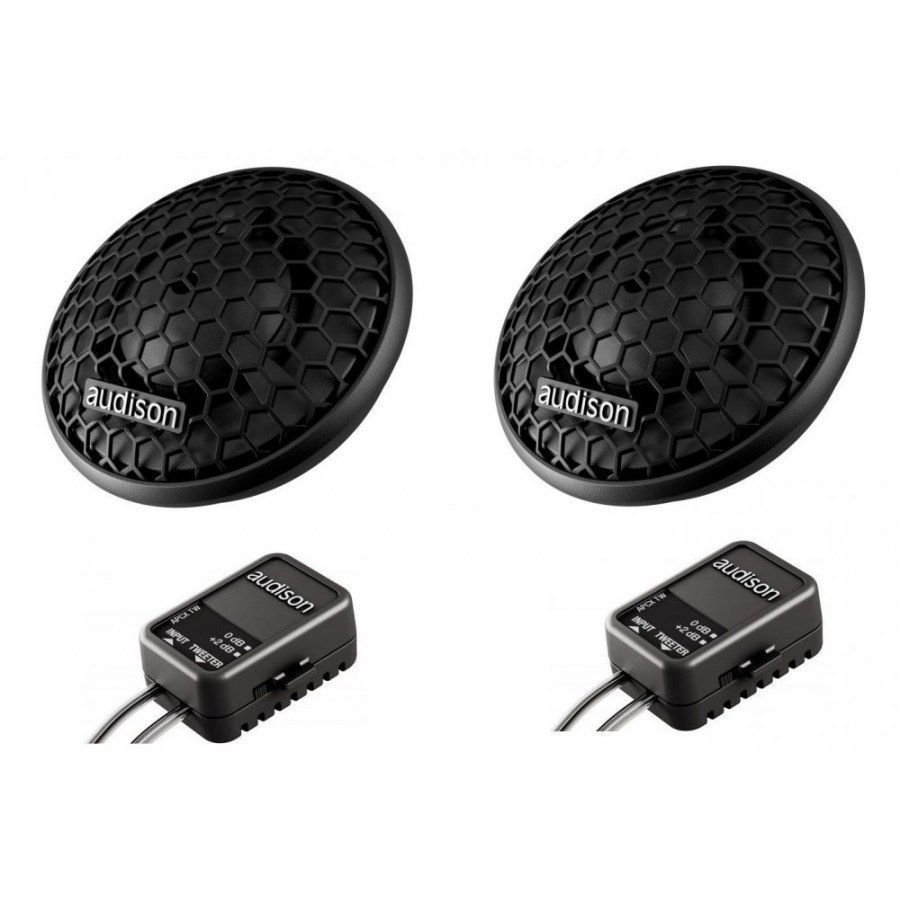

AP 1

• 26 mm diameter diaphragm combined with a wide-roll surround provides maximum efficiency and reduced resonance frequency.
• Neodymium magnet with low carbon content plates, provides reduced size and more linear sound reproduction, even during the most demanding audio passages.
• Acoustic lens designed to compensate for and fine tune the in-car frequency response anomalies in the 10 kHz - 13 kHz bandwidth caused by restrictive OEM grilles in critical OEM placements.
• Extremely compact dedicated passive crossover APCX TW supplied with the product, optimised for OEM Integration, featuring an attenuation switch (0 dB, +2 dB) to tune the in-car response according to different installation conditions.
• Passive crossovers are supplied with “OEM Integration compliant” fast-on connectors. The ends, different in each of the two poles, eliminate any possible connection errors and speed up the required installation time.
• Wide array of mounting accessories supplied with the product, for high fitment flexibility in OEM Integration.
• CCAW (Copper Clad Aluminium Wire) ultra-light ferrofluid cooled voice coil is wound on a Kapton former, for better heat dissipation.
• Dome profile and motor are optimised with FEM (Finite Element Method) simulation technology.
• Developed with the KLIPPEL suite.

• Comp: Tweeter
• Size: 26 mm (1")
• Power Handling: Hi-pass filtered 3.5 kHz @ 12 dB Oct. 150 W Peak Power
• Impedance: 4 Ohm
• Frequency Response: 2k ÷ 20k Hz
• Sensitivity: 90 dB/Spl
• Magnet: Neodymium
• Dome: Tetolon fibre

Approximate Dimensions:

• Height: 1.5"
• Width: 1.7"
• Depth: .78"
