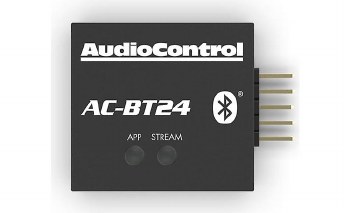

AC-BT24

• High Definition Low-Latency Audio Streaming
• aptXTM HD Support
• 24 bit / 48 kHz Audio Streaming from Devices with aptX Codec
• Wireless DSP Programming via DM Smart DSP™ app for iOS/Android
• Simultaneous Audio Streaming and DSP Programming
• Compatible with: DM-810, DM-608, D-6.1200, D-4.800, D-5.1300, DM-RTA

Bluetooth

• Version: 4.2
• aptX HD Compatible
• UART Interface

Output

• Dual Differential Class AB Output Stage

Performance

• Signal to Noise Ratio: 96 dB
• Maximum Data Rate: 3 Mbps (typical 1.6 Mbps)
• Operating Range: 10+ meters (depending on environment)

General

• Power Requirements: Provided by Option Port

Weights & dimensions

• Dimensions: 1.4”L x 1.0”W x 0.5”H
• Weight: 0.3 oz (9 g)

in the box: AC-BT24, Quick Start Card, Warranty
