51LX12005

$849.99

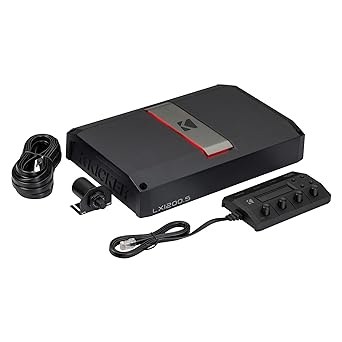

LX1200.5 5-Channel Class-D Amplifier, LXRC Dash Remote Included, LXCC wired control center included. Gain-match LED's show perfect gain setting, Customize appearance with reversible center panel and choice of 11 RGB LED accent colors, FIT technology accepting low and high-level inputs up to 40V. Amp 1 & Amp 2 (Stereo Channels) 175W x 4 @ 2-Ohm, 125W x 4 @ 4-Ohm, 350W x 2 @ 4-Ohm Bridged. Sub Channel 700W @ 1-Ohm, 550W @ 2-Ohm, 300W @ 4-Ohm. H 2-3/8" x W 8-7/16" x L 12-5/8"

Powerful 5-Channel System: Delivers 175W x 4 @ 2Ω for full-range speakers and 700W @ 1Ω for subwoofers, ensuring crystal-clear highs, punchy mids, and deep bass from a single amplifier.
Advanced System Control: The included LX Control Center (LXCC) provides real-time monitoring of battery voltage, amp temperature, and protection status while allowing precise gain and crossover adjustments.
Enhanced Subwoofer Management: The LX Remote Control (LXRC) features SHOCwave2.0 digital bass restoration, giving you fingertip control over bass levels for the ultimate low-end experience.
High-Efficiency Class-D Technology: Designed for lower current draw and reduced heat, providing extended playtimes and reliable performance without sacrificing power output.
Customizable Aesthetic and Protection Features: Choose from 11 RGB LED accent colors and a reversible center panel while benefiting from FIT+ noise elimination, gain-match LEDs, and multiple thermal and voltage protections.

LX Series Class D 1 ohms Stable 5-Channel Amplifier
RMS Power Rating:
- 4 ohms: 125 watts x 4 channel + 300 watts x 1 channel
- 2 ohms: 175 watts x 4 channel + 550 watts x 1 channel
- 1 ohm: 700 watts x 1 channel
- Bridged: 350 watts x 2 channel @ 4 ohms + 550 watts x 1 channel @ 2 ohms
Total RMS power output: 1200 watts
LED Power/Protect Light
4 pairs of pre-amp outputs
Speaker-level (high-level) inputs
Reversible center panel and choose between 11 RGB LED accent colors
Thermal, circuit and voltage stability protection
Wired LX Control Center (LXCC) included
- Diagnostic readout for battery voltage, LED output clip indication, temperature and protection status
- Adjust gain trim, left-channel time delay, and selectable crossover type, slope and frequency
Wired LX Remote Control (LXRC) included
- Dynamic fingertip dash remote of bass level adjustment
- Features SHOCwave2.0 (Sub-Harmonic Octave Creation)
- Digital bass restoration algorithm recovers low-bass frequencies
- Displays battery voltage in fuel-gauge-style readout
- Control of RGB LED brightness
- Output clipping indicator to prevent distortion
Thermal, circuit and voltage stability protection
Input sensitivity:
- Low level: 125 mV - 5 volts
- High level: 1 - 40 volts
Frequency Response: 20 - 20000 Hz
Total Harmonic Distortion (THD): <1%
Signal to Noise Ratio: 75 dB
Variable high-pass filter: 20 - 5000 Hz (Channels 1-4)
Variable low-pass filter: 40 - 5000 Hz (Channels 1-4) / 40 - 160 Hz (Channel 5)
Subsonic filter: 10 - 80 Hz
Variable Bass Boost: 0 - 6 dB
Fuse Rating: 100A
1/0 AWG gauge amplifier wiring kit is recommended for installation
Dimensions: 12-5/8" L x 8-7/16" W x 2-3/8" H
