50CWCS154

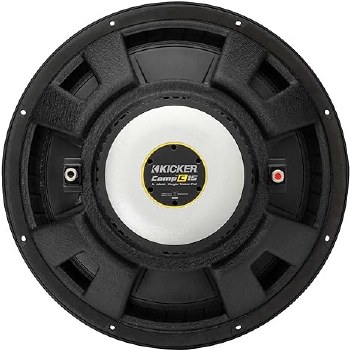

Speaker Terminals: The terminals are spring loaded for solid connections with speaker wire up to 10-gauge.

Recommended Sealed Box Volume:

• Minimum Volume: 1.8 ft³
• Maximum Volume: 3.0 ft³

Recommended Vented Box Volume:

• Minimum: 3.0 ft³; 15½" x 3" port opening; 17" port length
• Maximum: 2.25 ft³; 15½" x 3" port opening; 16¼" port length

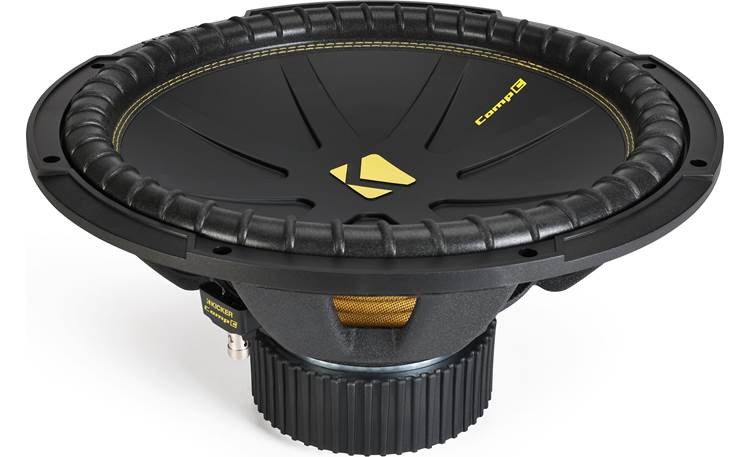

• 15" 4-ohm subwoofer
• injection-molded polypropylene cone
• ribbed foam surround
• power handling: 450 watts RMS
• peak power handling: 900 watts
• frequency response: 25-500 Hz
• sensitivity: 89.2 dB
• top-mount depth: 7.25"
• mounting height: 0.95"
• cutout diameter: 13.823"
• sealed box volume: 1.8 - 3.0 cu. ft.
• ported box volume: 3.0 - 5.0 cu. ft.
