KICKER
713034024361
49ST9MR8
$199.99

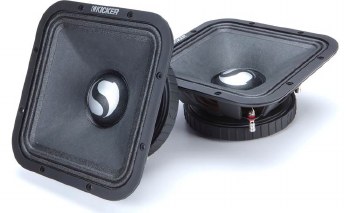

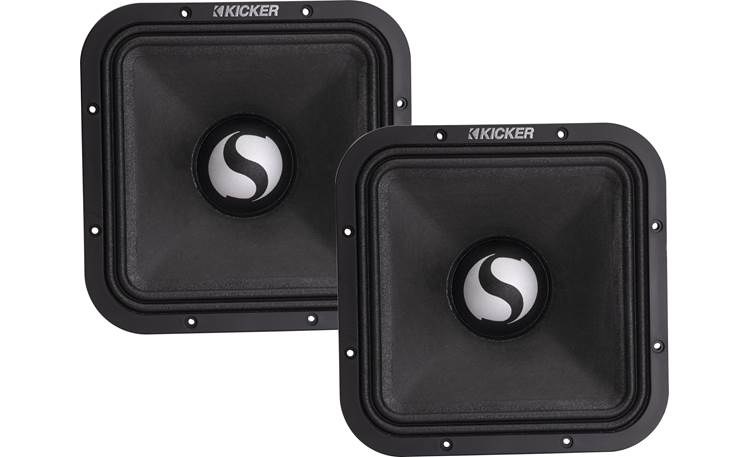

ST9MR8 9" Midrange 8-Ohm ST-Series Street/PA Pro Audio style speakers Square cone design provides nearly 20% more output Perfect for Competition-Level SPL Systems Spring-loaded terminals accept 12 AWG wire 50W-300W RMS 600W Peak Mounting Depth 3-9/16" Mounting Cutout 7-3/16" x 7-3/16" RoHS Compliant
Mounting: The ST9MR midrange drivers are designed to mount in free-air applications. They are just over 3½" deep (3.57") and require a square opening approximately 7¾" x 7¾".

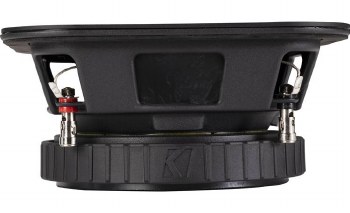

Terminals: The spring post terminals accept wire up to 12-gauge. Kicker recommends using at least 16-gauge wire (minimum).
Crossover: These speakers do not include a crossover, so you'll need to add one to integrate them into your system.
Dimensions:
- Top mount depth: 3.57"
- Mounting height: 0.29"
- Flange height: 0.29"
- Bottom mount depth: 3.86"
- Tweeter Protrusion: 0.0"
- Cutout: 7.77" x 7.77" (square)
- Frame: 9.01" x 9.01"
- 9" midrange speakers designed for SPL competition (pair)
- pressed pulp cone with cloth surround
- square woofer design
- handles up to 300 watts RMS (600 watts peak)
- frequency response: 80-5,500 Hz
- impedance: 8 ohms
- sensitivity: 94 dB
- grilles not included
- top-mount depth: 3-9/16"
- cutout dimensions: 7.77 "x7.77"
- frame width: 9"
