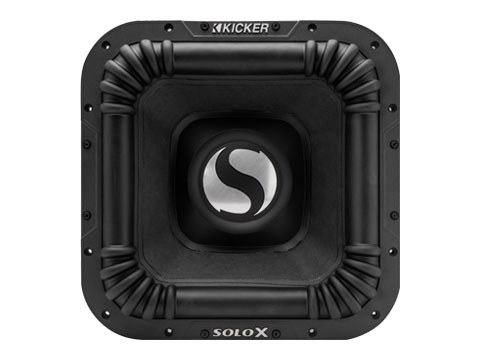

49L7X151

1. Field-Replaceable Recone Kit – cone/voice coil/spider assembly, and no gluing required
2. Forced Air Cooling™
3. Three-inch, aluminum voice coil former
4. Dual-spider suspension
5. Double-pressed pulp cone
6. Heavy-duty UV-resistant Santoprene surround
7. Custom rubber magnet boot
8. Cast-aluminum basket
9. Single 8 AWG terminal and dual 8 AWG terminal block
10. Triple-Stacked Ferrite Magnet

• Size (in, cm) - 15, 38
• Rated Impedance (Ohms) - 1 DVC
• Rec Amp Power rms - 1000-2000
• Frequency Response - 20-100
• Magnet Diameter (in, cm) - 8-11/16, 22
• Total Magnet Weight (oz, kg) - 406, 11.5
• Voice Coil Diameter (in, mm) - 3, 75
• Voice Coil Winding Width (in, mm) - 2.5, 62.5
• Top Plate Thickness (in, mm) - 0.5, 13
• Xmax (in, mm) - 1.25, 31.25
• Mounting Cutout (in, cm) - 13 3/4, 34.9
• Mounting Depth (in, cm) - 11-9/16, 29.3
• Recommended Vented Box Volume (Cu. Ft., L) - 5, 141.6
• Port Opening (in x in, cm x cm) - 4.25 X 16.5, 11 X 42
• Port Length (in, cm) - 34.75, 88
• Vented Enclosure Tuning Frequency (Hz) - 30
• Woofer Displacement (ft^3, L) - 0.21, 5.94
