48KXMA12002

$649.99

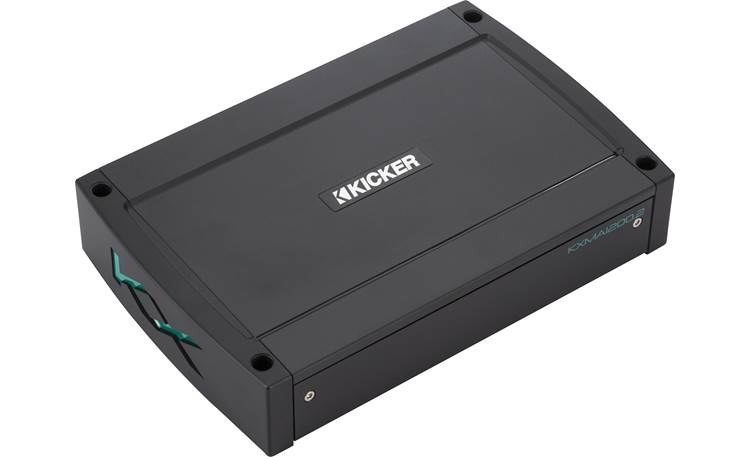

KXMA1200.2 Two-Channel Marine Amplifier, Class D Design, 1500W Dynamic Power, Gain Control with "Gain Match" LED Indicator, FIT2 Circuitry, Variable 24dB Crossover, DSP-Controlled Preamp, KickerEQ Variable 6dB Bass Boost, Real Marine ABYC/NMMA-Compliant Power Connections, Conformal-Coated Circuit Board, Easy Access to Settings behind Gasket-Sealed Cover Panel, Black Anodized Aluminum Chassis, Top-Mounted Teal LED Light Pipe, 316L Stainless-Steel Hardware Included. 600W x 2 @ 2-Ohm Stereo, 300W x 2 @ 4-Ohm Stereo. 2-1/8" H x 8-5/16" W x 11-3/16" L

Marine Amplifier: The Kicker KXMA1200.2 (48KXMA12002) 2-channel marine amplifier can provide 300 watts x 2 (4Ω) or 600 watt x 2 output (2Ω). Designed for the marine environment, the KXMA1200.2 features marine-grade speaker terminals, stainless-steel screws, conformal-coated circuit boards, and ABYC/NMMA-compliant power and ground connections.

Note: The Kicker KXMA1200.2 marine amplifier is not waterproof and should not be mounted where it will get wet.

Class D Amplification: The KXMA1200.2 features state-of-the-art Class D amplification which provides ample power in a compact chassis. The 2-channel amp can provide the following power output:

300 watts RMS x 2 @ 4 Ohms (@14.4V, ≤ 1% THD+N)
600 watts RMS x 2 @ 2 Ohms (@14.4V, ≤ 1% THD+N)

Controls & Indicators:

Input Level: 2-position switch; select High (speaker-level) or Low (line-level).
Input Gain Control: continuously variable from 125mV to 5V with the Input Level switch set to Low; 250mV to 10V with the Input Level switch set to High. The Gain control features a backlit "Optimal Input" LED indicator that will light if the Gain is set too high and the incoming signal starts to clip. The Gain control should be backed down just below the clipping (indicator On) point.
Crossover Switch: 4-position switch; select Off, High Pass, Low Pass, or Bandpass; the slope is 24dB/octave.
HP Frequency: a rotary control; continuously variable from 10Hz-500Hz.
LP Frequency: a rotary control; range depends on Low-Pass Range switch; continuously variable from 40Hz to 500Hz at x1 setting, 400Hz to 5000Hz at the x10 setting.
Low-Pass Range: 2-way switch sets the Low-Pass frequency range to x1 or x10.
KickEQ+ Bass Boost: a rotary control lets you increase the bass level between 0dB and +6dB; centered at 40Hz
Auto Turn-on: The amplifier has three methods of turning on via a 3-way switch: +12V, DC Offset, and Audio:
- +12V: The preferred method (+12V) is to run an 18-gauge wire from the remote turn-on lead of the source unit to the Remote (REM) terminal on the amp. When a +12V signal is detected on the wire, the amplifier will turn on.
- DC Offset: If your source unit lacks a remote turn-on lead (a factory head unit, for example), you can choose to turn on the amplifier via the DC Offset method. When a DC offset is detected (>3 volts) on the speaker-level inputs, the amplifier automatically turns on.
- Audio (Signal Sense): This method detects an incoming audio signal from your source unit (speaker-level) and automatically turns on the amp.
  Note: If using either the DC Offset or Audio methods of powering the amplifier On/Off, the REM terminal becomes a +12V output that can be used for activating additional amplifiers.
PRT LED: A red Protect LED can let you know if a problem arises.
- Flickering: A flickering PRT LED can indicate low-voltage from the battery, either from a low battery or a weak power/ground connection.
- On Solid: This can indicate Thermal Shutdown, if the amp gets too hot; Shorted speaker output; or Low Voltage, if the incoming power is not within the 10V-16V operating range.

Wire Connections: The KXMA1200.2 has screw-down terminals for the power, ground, turn-on (REM), and speaker outputs. The Power and Ground slots are 0.47" wide and the Remote and Speaker slots are 0.21" wide. 1/0 AWG power and ground wires are recommended (sold separately). The Power and Ground terminals are ABYC/NMMA compliant for marine installations.

External Fuse: The amplifier does not include a built-in fuse, therefore an external fuse should be placed on the power wire, within 18" of the battery. It is recommended that a 1/0-gauge amplifier wiring kit and a 150-amp external fuse be used when installing the amplifier.

Input Signal: The KXMA1200.2 accepts either High (speaker-level) or Low (line-level) input signals on the single pair of RCA inputs, selectable using the input level switch on the end of the amp. When using a speaker-level input signal, add the optional Kicker KiSL speaker-level to RCA adapter (sold separately). The input sensitivity is 125mV-5V (low) or 250mV-10V (high).

Line Out: A pair of RCA Output jacks are provided as a "pass-thru" for the incoming signal, letting you run the signal out to additional amplifiers.

Dimensions: When mounted horizontally, the KXMA1200.2 dimensions are:

Width: 11.19"
Height: 2.19"
Depth: 8.39" (not including wire)

2-channel marine amplifier
300 watts RMS CEA-2006 x 2 at 4 ohms (600 watts RMS x 2 at 2 ohms)
non-bridgeable
Class D amp technology
gain knob also functions as clip light
variable high-pass filter (10-500 Hz, 24 dB/octave)
variable low-pass filter (40-5000 Hz, 24 dB/octave)
bandpass engages both high- and low-pass filters
variable bass boost (0-6 dB at 40 Hz)
weather-resistant conformal-coated circuit boards
front-mounted controls protected behind gasket-sealed fold-down door
Fail-Safe Integration Technology eliminates noise from your electrical system
preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input))
preamp outputs
wiring and hardware not included with amplifier
- 1/0-gauge power and ground leads and a 150-amp fuse recommended
- for multiple amplifiers, an additional 150-amp in-line fuse between the distribution block and this amplifier is recommended
dimensions: 11-1/4"W x 2-1/4"H x 8-3/8"D
