47KMFDB3

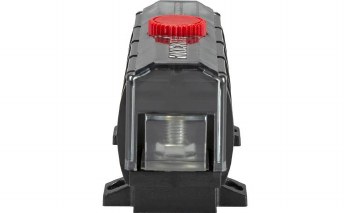

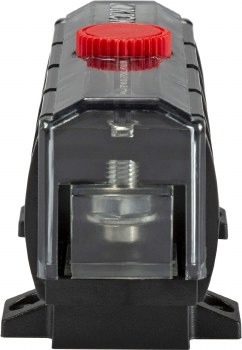

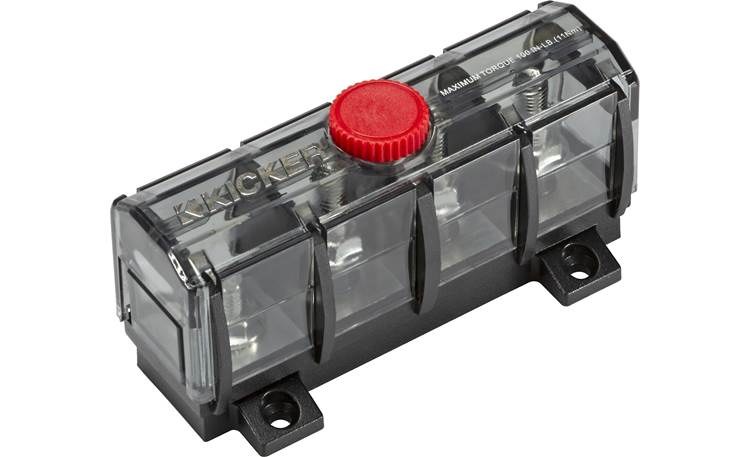

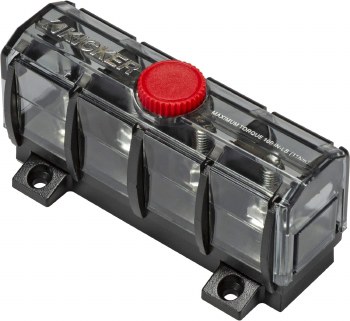

Overview: The Kicker Marine Fused Distribution Block (KMFDB3) can provide connection for up to 3 amplifiers and is designed to work with MRBF fuses (sold separately). Its stainless steel hardware and injection-molded outer cover with set-screw are compliant with AYBC and USCG insulating guidelines to ensure marine vessel safety.

Connections: The KMFDB3 includes 4 connection posts that can accept 5/16" ring-terminals, one 5/8" tall post for a battery connection and 3 additional 1-1/4" tall posts, designed to accommodate a ring-terminal and an MRBF marine fuse.

Terminal Cover: The KMFDB3 includes a protective outer cover with a set-screw holder. Break-away tabs along each side and end can be removed to accommodate wire connections.

• marine power distribution block
• distributes power to up to three amplifiers from one 12-volt input
• accepts ignition-protected MRBF fuses
• three 1-1/4" tall connection posts for power wires and MRBF fuses, one 5/8" tall connection post for the battery connection
• stainless steel hardware and injection-molded cover
• works with 5/16" ring terminals
• compliant with Coast Guard and ABYC standards
• dimensions: 4-3/4"W x 2-1/4"H x 2-1/8"D
