46TL7T122

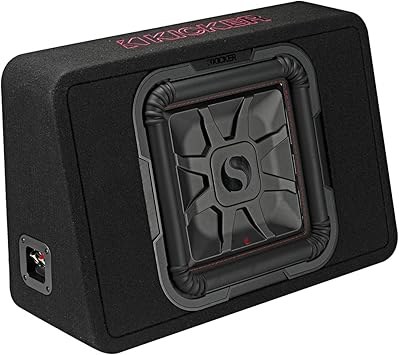

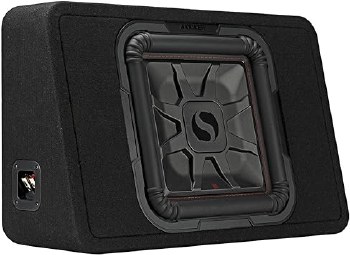

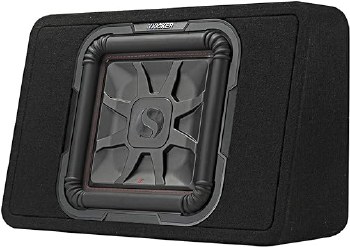

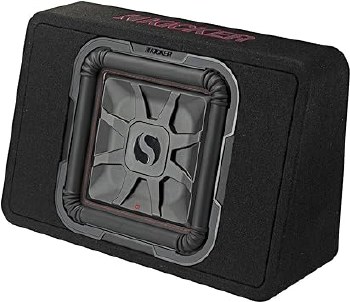

Overview: The TL7T122 Truck Enclosure features a single square 12" Solo-Baric L7T subwoofer (dual 4Ω voice coils wired to present a 2Ω load) mounted in a sealed wedge enclosure designed to mount behind truck seats or other locations where space is a premium. Built with thick MDF and covered in stylish black carpet, the Kicker subwoofer enclosure can handle high power while taking up minimal space.

Power Handling: The single driver can handle 600W RMS, 1200W peak power.

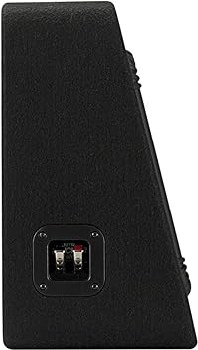

Terminals: A single pair of spring-posts are provided with a 1/4" opening, accommodating speaker wire up to 10-gauge, banana plugs, or pin-connectors.

• sealed truck-style enclosure
• houses one square shallow-mount 12" L7T Series dual 4-ohm voice coil subwoofer (wired to 2-ohm impedance)
• 3/4" medium-density fiberboard construction covered with carpet
• power handling: 600 watts RMS (1200 watts peak power)
• frequency response: 25-100 Hz
• sensitivity: 86.54 dB
• dimensions: 21-1/2"W x 13-3/4"H x 8"D1 x 4-3/8"D2
