46L7T124

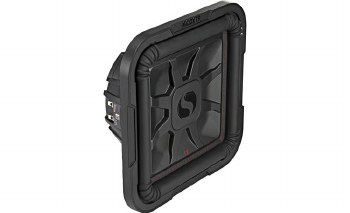

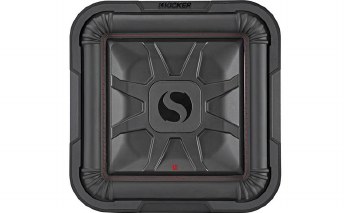

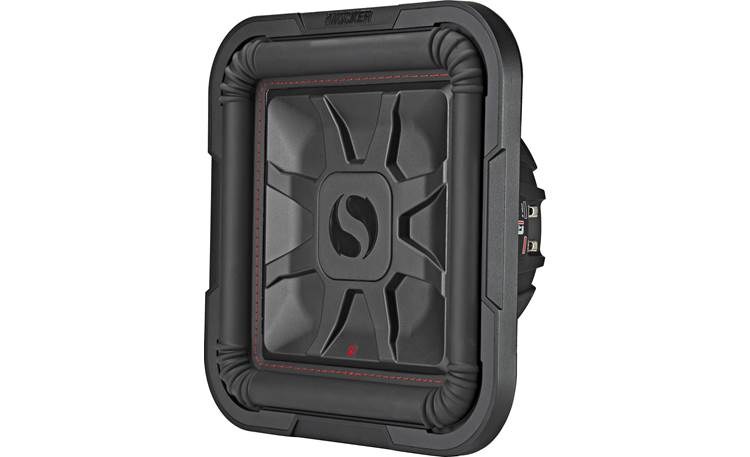

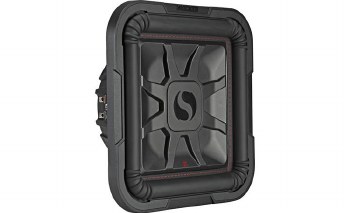

Square Design: By making the cone square, Kicker is giving you the most possible cone area (Sd) for a given size baffle, 16% to 20% more area than a conventional round subwoofer. More cone area means the cone moves more air, resulting in louder, deeper bass.

Dual Voice Coils: For increased system flexibility, the woofer has two 4Ω voice coils. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.

Cone Material: The square SoloKon design is a unique one-piece construction, using injection molded polypropylene that moves as a lightweight piston, for improved control. A rear cone brace integrates into the cone with a continuous contact perimeter weld, which improves strength and resistance to deformation under pressure.

Surround: The tough, flexible Santoprene rubber surround has a long-throw, positive-roll design, which controls extreme cone excursion and is tear-resistant. The corners of the surround are ribbed to ensure linear cone motion. The surround is stitched to the reinforced cone edge to improve durability.

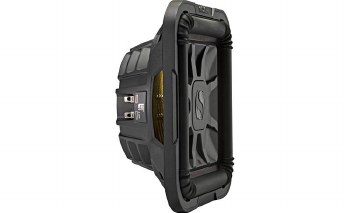

Terminals: The spring post terminals will accept pin connectors, single banana plugs (but not dual), and bare wire up to 8 gauge.

Break-in Period: Due to the complex nature of Kicker subwoofers, they require a break-in period in order to produce optimum bass response. The high-performance suspension system makes the speakers very stiff out-of-the-box. Approximately two weeks of daily playing will allow the suspension to break-in and reach its optimum equilibrium. A broken-in subwoofer will exhibit stronger bass performance, smoother response, and greater low-bass extension.

Sealed Enclosure: A sealed enclosure design gives the smoothest response with increased energy at the lowest frequencies (between 25 and 30 Hz).

• Minimum Volume: 0.55 ft³
• Maximum Volume: 1.25 ft³

Vented Enclosure: A vented enclosure design increases efficiency relative to sealed enclosures.

• Minimum Volume: 1.75 ft³ with a 2½" x 12½" x 20" slot port
• Maximum Volume: 2.25 ft³ with a 3" x 12½" x 20½" slot port

Cutout: The woofer will not mount in a standard enclosure with a round cutout. Instead, the woofer must be mounted in an enclosure with an 11.012" x 11.012" square opening.

• 12" shallow-mount subwoofer with dual 4-ohm voice coils
• square SoloKon™ polypropylene cone with Santoprene rubber surround
• steel basket
• power handling: 600 watts RMS (300 watts per voice coil)
• peak power: 1200 watts
• frequency response: 25-100 Hz
• sensitivity: 86.54 dB
• sealed box volume: 0.55-1.25 cu. ft.
• ported box volume: 1.75-2.25 cu. ft.
• top-mount depth: 4-1/8"
• grille not included
