46KISLOC2

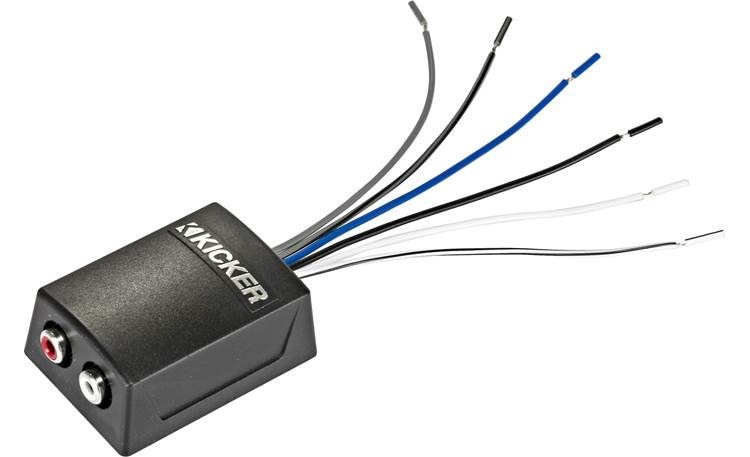

Overview: The Kicker KISLOC2 is a 2-channel, passive converter that allows any car stereo to be connected to an amplifier or processor (sold separately). This is accomplished by "de-amplifying" the radio's high-level speaker outputs into low-level signals that can be passed out of the built-in RCA jacks. The KISLOC2 is designed without inductors, allowing it to deliver a flat frequency response of 20Hz - 20kHz at all volume levels.

Conversion: The KISLOC2 can accept speaker-level signals up to 55 watts and has a pair of female RCA jacks that can output an audio signal up to 8V.

OEM Compatible: The Kicker KISLOC2 is compatible with most modern OEM "smart" radios that have open-circuit protection. The KISLOC2 applies a 60Ω load to the speaker input lines, allowing the factory radio to output audio uninterrupted.

Remote Output: The KISLOC2 can provide a 12VDC/100mA remote output signal, for activating outboard amps or processors, from the converted input signal using DC offset. A red LED indicator on the input side of the converter lights when DC offset is active.

Input Wiring: The attached 4" speaker-level input wires connect to the left and right speaker output wires of your car stereo. The Kicker input wires are as follows:

• White: L+
• White/Black: L-
• Grey: R+
• Grey/Black: R-
• Black: Input ground
• Blue: Remote turn-on output

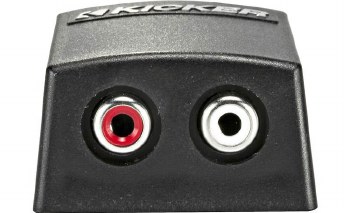

Audio Outputs:

• Red RCA: Right audio output
• White RCA: Left audio output

• 2-channel line output converter
• 12-volt DC output for amplifier remote turn-on
• bare speaker wire inputs
  • accepts up to 55 watts RMS per channel
• applies 60-ohm load to each channel to circumvent open-circuit protection
• RCA line outputs up to 8 volts RMS
• dimensions: 1-5/8"W x 15/16"H x 2-5/8"D
