KICKER
713034088448
46CST204
$69.99

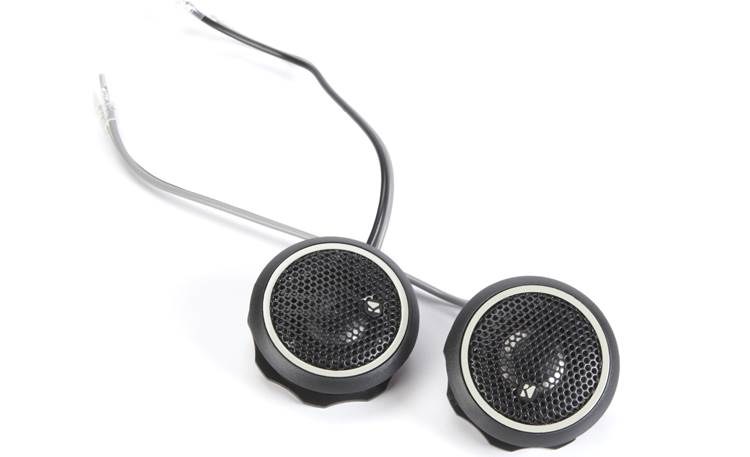

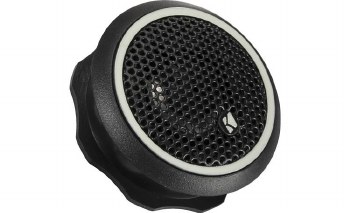

CS Series CST20 .75" Titanium Tweeter, 4-Ohm, 6dB in-line crossover, 50W RMS, 100W Peak, Three tweeter mounting options including flush, angled and surface pods.

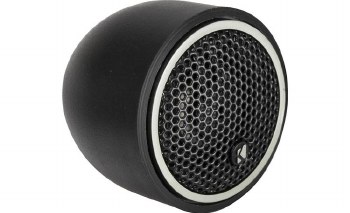

Mounting Options: The tweeters come with brackets to allow multiple mounting configurations: flush-mounted, angled flush-mounted (approximately 10°), and angled surface-mounted (approximately 45°).
Tweeter Dimensions:
| Flush Mount | Angled Flush Mount | Angled Surface Mount | |
|---|---|---|---|
| Mounting Height | 0.275" | 0.662" | 1.928" |
| Depth | 0.548" | 0.705" | 0.491" (screw depth) |
| Frame Diameter | 1.975" | 1.975" | N/A |
| Cutout Diameter | 1.570" | 1.685" | N/A |
| Frame Width | N/A | N/A | 1.887" |
| Frame Length | N/A | N/A | 2.110" |

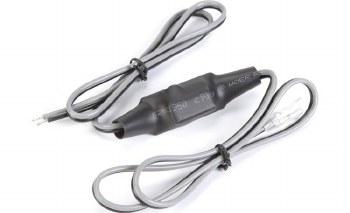

Crossovers: The passive crossovers are in-line with the included speaker wire. The slope is 6 dB/octave and the crossover point is 4,500 Hz. The crossover measures approximately ¾" at its thickest point.
- 3/4" titanium dome tweeters
- hardware for flush-, surface-, pod-, and angle-mounting
- handles up to 50 watts RMS (150 watts RMS peak power)
- frequency range: 4,500-21,000 Hz
- in-line crossovers (4,500 Hz at 6 dB/octave)
- features neodymium magnets
- sensitivity: 92 dB
- top-mount depth: 9/16"
- warranty: 2 years
Support
Manuals
2019 CS Tweeters | Multilingual | Download
