46CSS674

Length: &nbsp;4.02&quot; (4.67&quot; including mounting flange)
Width: &nbsp;2.29&quot; (4.47&quot; including tweeter output level switch)
Height: &nbsp;1.01&quot;

$179.99

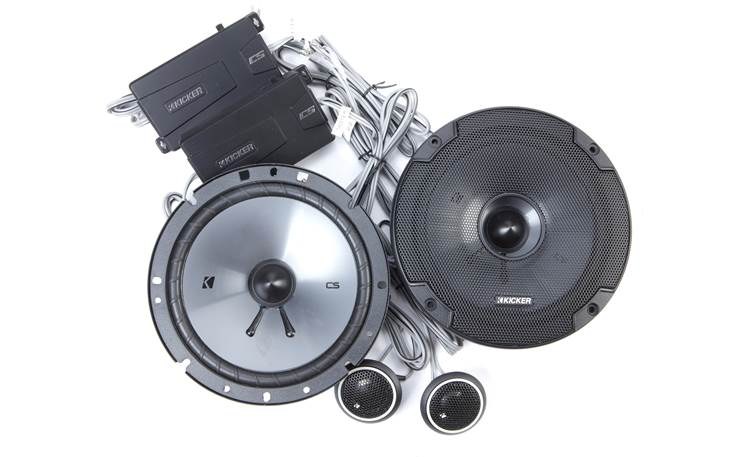

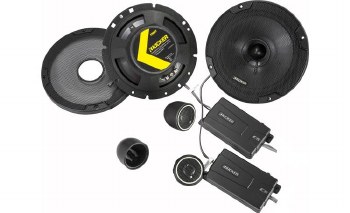

CS-Series CSS67 Component System, 6.75" Woofer, 3/4" Titanium tweeter, 4-Ohm, 100W RMS, 300W Peak, (Three tweeter mounting options including flush, angled and surface pods)

Polypropylene Woofer Cones: The Kicker CS-series speakers feature durable polypropylene woofer cones, resistant to the moisture and temperature extremes found in automotive applications.

Ribbed Polyester Foam Surrounds: The ribbed polyester foam surrounds allow extended cone excursion for additional bass output and higher SPL.

Tweeter Mounting Options: The tweeters come with brackets to allow multiple mounting configurations: flush-mounted, angled flush-mounted (approximately 10°), and angled surface-mounted (approximately 45°).

Tweeter Dimensions:

	Flush Mount	Angled Flush Mount	Angled Surface Mount
Mounting Height	0.275"	0.662"	1.928"
Depth	0.548"	0.705"	0.491" (screw depth)
Frame Diameter	1.968"	1.968"	N/A
Cutout Diameter	1.570"	1.685"	N/A
Frame Width	N/A	N/A	1.887"
Frame Length	N/A	N/A	2.110"

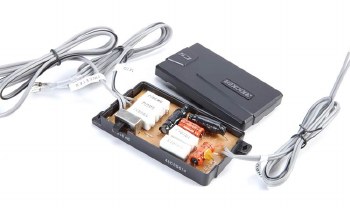

Crossovers: The component system includes passive 2-way crossover networks for a seamless transition between the woofers and tweeters. The slope is 12dB per octave (both high pass and low pass) and the crossover point is 4000 Hz. A switch on each crossover allows you to set the tweeter output; 0 dB, +3 dB, or +6 dB. Each crossover's input and output wires are attached; the 35" woofer output has quick slide terminals that connect directly to the woofer and the 35" tweeter output has bullet terminals that mate to the terminals on the tweeter wires.

Crossover Dimensions:
