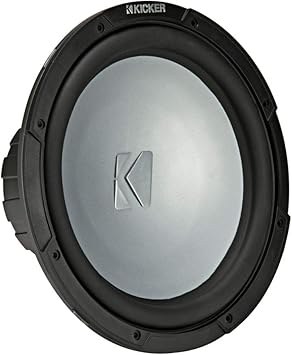

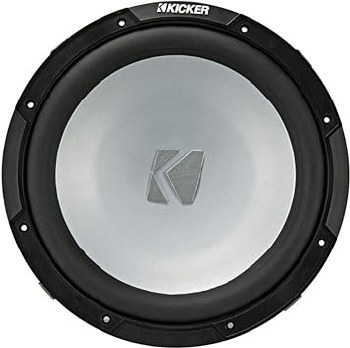

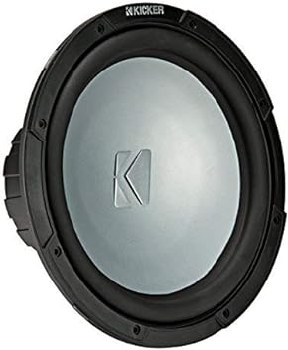

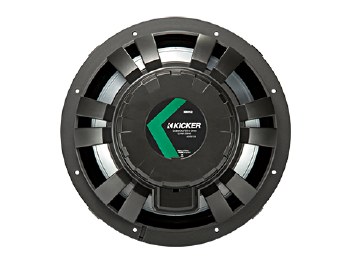

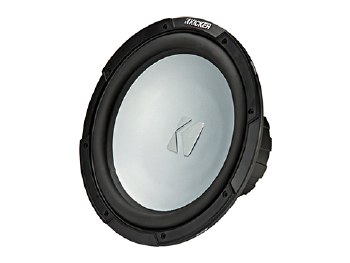

45KM124

• Four-Ohm Voice Coil
• Injection-Molded Polypropylene Cone
• Co-molded Santoprene® Surround
• UniPlate™ Back Plate And Pole Piece
• Thick Tinsel Leads
• Large Ceramic Magnet
• Polymer Basket Resists Corrosion
• Protective Terminal Cap
• Stainless Mounting Hardware Included
• Meets or Exceeds ASTM Standards for UV and Salt/Fog Exposure
  (ASTM B117 200 hr. Salt Fog Test) (ASTM G154 400 hr. Accelerated UV Test)

Thiele/Small Parameters
 45KM124 T/S Parameters PDF
Product Dimension Sheet
45KM12 Dimensions
Woofer(in,mm)
12, 30
Impedance (OHMS)
4 SVC
Peak Power (watts, per ANSI/CTA-2031-A)
350
Recommended Amplifier Power (watts RMS)
175
Sealed Enclosure Volume Min-Max(ft³, L)
1.25-3.5, 25.4-99.1
Vented Enclosure Volume Min-Max(ft³, L)
1.75-2.25, 49.6-63.7
Frequency Response(Hz)
30-500
Mounting Depth(in, cm)
5.5, 13.9
Hole Diameter(in, cm)
11, 27.9
Outer Diameter(in, cm)
13, 32.95
