41KMLC

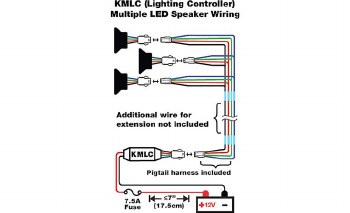

Wiring: If only using one Kicker LED speaker, subwoofer, or grille, the harness with the in-line RF receiver will plug directly into the harness attached to the speaker. If using more than one speaker, subwoofer, or grille (up to 12 can be used with a single RF receiver), both included harnesses are used and spliced to all the speakers. A 7.5A fuse is recommended for the power wire connection and is sold separately.

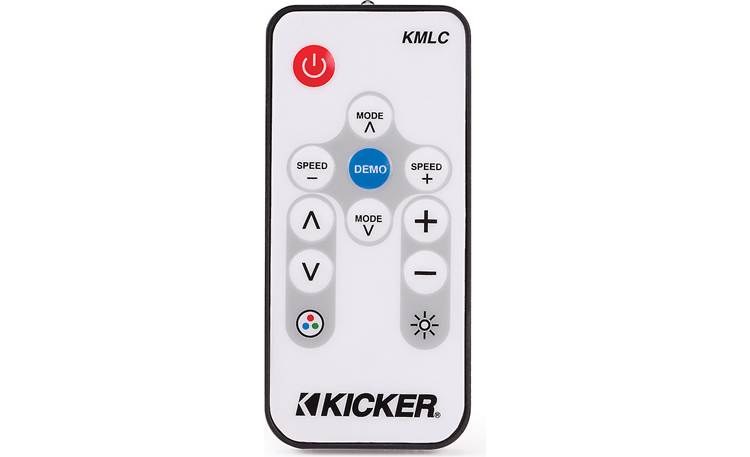

Controls:

• Power: LEDs on/off
• Mode: change the blinking pattern and color pattern
• Speed: change the blinking frequency
• Demo: cycles through all modes
• Color: select the static color
• Brightness: adjust LED brightness

Specifications:

• Input Voltage: +12 volts
• Output Current: 7.5A (4A peak per individual RGB wire)
• Recommended Fuse Protection: 7.5A
• Remote Frequency: 433.92 MHz
• Remote Range: 30' (with no obstructions)

• control your LED-equipped Kicker marine speakers and subs
• choose from 20 colors or 19 dynamic modes
• made for marine use
• RF Wireless remote control
• CR2025 Battery (installed)

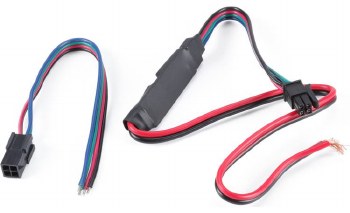

• 14" Wiring harness with in-line RF Receiver
• 6" Wiring harness
