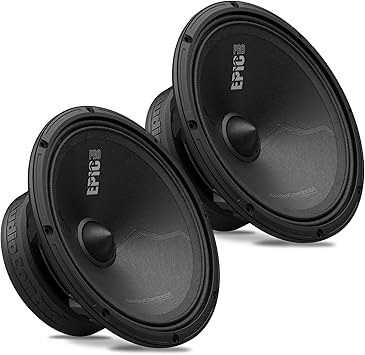

EPICPRO8X

• High Efficiency and Low Distortion Design for Clear Sound at Pro Volume
• Huge Output to Play Loud and Far
• High Power Handling for Insane SPL Capability
• Phase Cap for Improved Efficiency and Widened Bandwidth
• Lightweight Components and Precision Tolerances for
  Greater Efficiency
• Designed by AudioControl Engineers from the Ground Up
• Pair with EPIC Series amplifiers for the Perfect Match
• 250W RMS / 350W Max

• Speaker Model - EPICPRO8X
• Speaker Size - 8.0 in / 200 mm
• Impedance -4 ohms
• Voice Coil -1.5 in / 38 mm
• System Frequency (Fs) Response-80 – 12000 Hz
• Sensitivity -96.2 dB @ 1W/1 m | 99.2 dB @ 2.83V /1m
• Magnet Weight  - 32 oz / 907 g
• Magnet Dimensions -4.96 x 1.77 x 0.79 in / 126 x 45 x 20 mm
