ACR-U

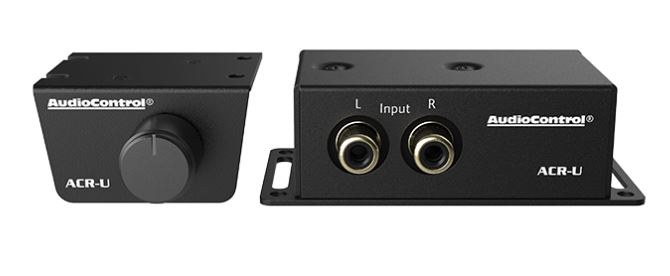

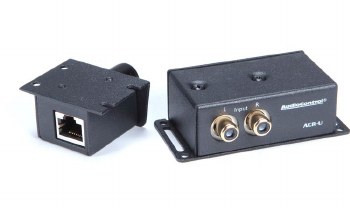

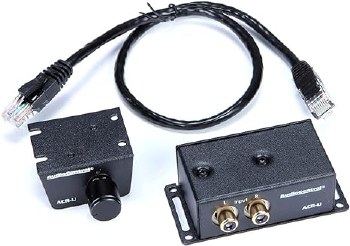

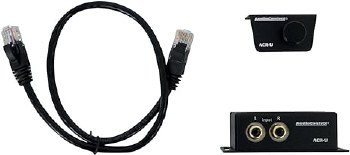

Mounting Options: The ACR-U consists of two parts; the hub, which can be hidden anywhere you have space, and the remote, which must be accessible. If you need more distance between them, the included 16" cable designed to connect the two can be replaced by another Cat5e cable, up to 300 feet long. The remote can be surface mounted using the flange of its housing, or the housing can be disassembled and the remote custom mounted.

• Surface Mounting: The remote's housing has four points for mounting screws, and is typically attached to the underside of the dashboard. The knob extends approximately ¾" from the housing. (Mounting screws are not included.)
• Custom Installation: The remote control can be removed from the housing, and flush mounted through a hole (approximately 9/32") in the dash, or another surface.

Dimensions:

• Remote:
  • Width: 1.75"
  • Height: 1"
  • Depth: 1⅜" (3⅜" including knob and wiring)
• Hub:
  • Width: 2⅝" (3¼" including mounting flange)
  • Height: 1"
  • Depth: 1½" (4" including wiring)

• Insertion Loss: 0.017 dB
• Max. Attenuation: -97 dB

USER MANUAL
